P1506 Idle Charge Actuator Signal High of Coil #1

General Information

Component Location





General Description

The ISCA (Idle Speed Control Actuator) is designed to maintain a steady desired idle speed. Idle airflow is adjusted through the idle air actuator in order to maintain the desired idle speed under various load conditions. Load conditions vary due to numerous factors, such as engine temperature, air conditioning, electrical load and power steering load.

DTC Description

If there is Short to power in ISCA (opening coil) circuit, PCM sets DTC P1506.

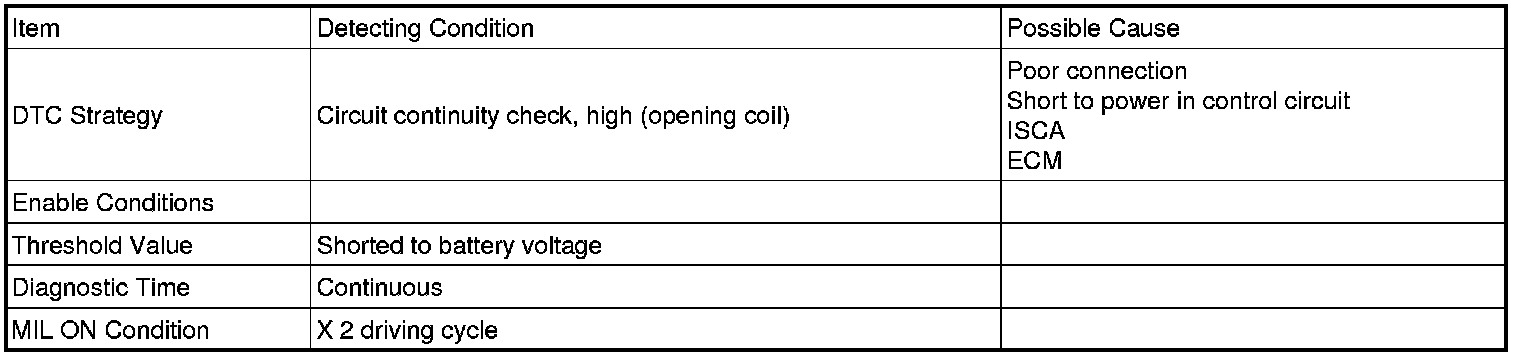

DTC Detecting Condition





Specification





Schematic Diagram





Signal Waveform
