Monitor DTC Status

P0743 Damper Clutch Control Solenoid Valve : Open or Short (GND)

Scantool Diagnostics - Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".

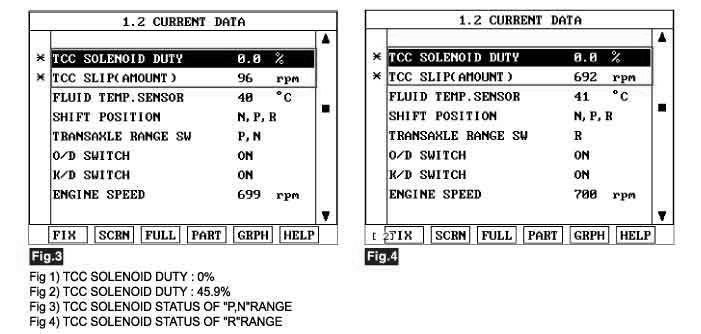

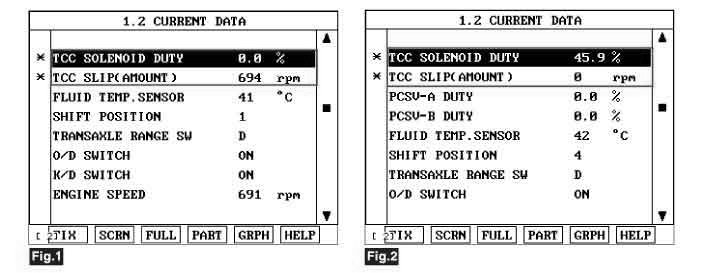

3. Monitor the "TCC SOL. VALVE" parameter on the scantool
4. Select "D RANGE" and Operate the vehicle
5. Check "TCC SOL. VALVE" parameter value changes while driving








6. Does "TCC SOLENOID DUTY" follow the referance data?
YES
1) Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "Verification Vehicle Repair" procedure
NO
1) Go to "W/Harness Inspection" procedure
