General Information

P0736 Reverse Incorrect Ratio

General Information

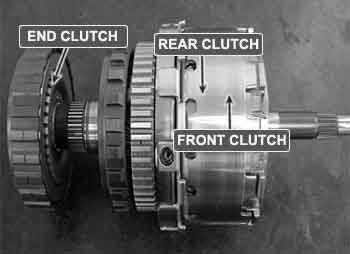

Component Location





General Description

The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the reverse gear ratio, while the transaxle is engaged in the reverse gear. For example, if the output speed is 1,000 rpm and the reverse gear ratio is 2.480, then the input speed is 2,480 rpm.

DTC Description

This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the reverse gear ratio, while the transaxle is engaged in reverse gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

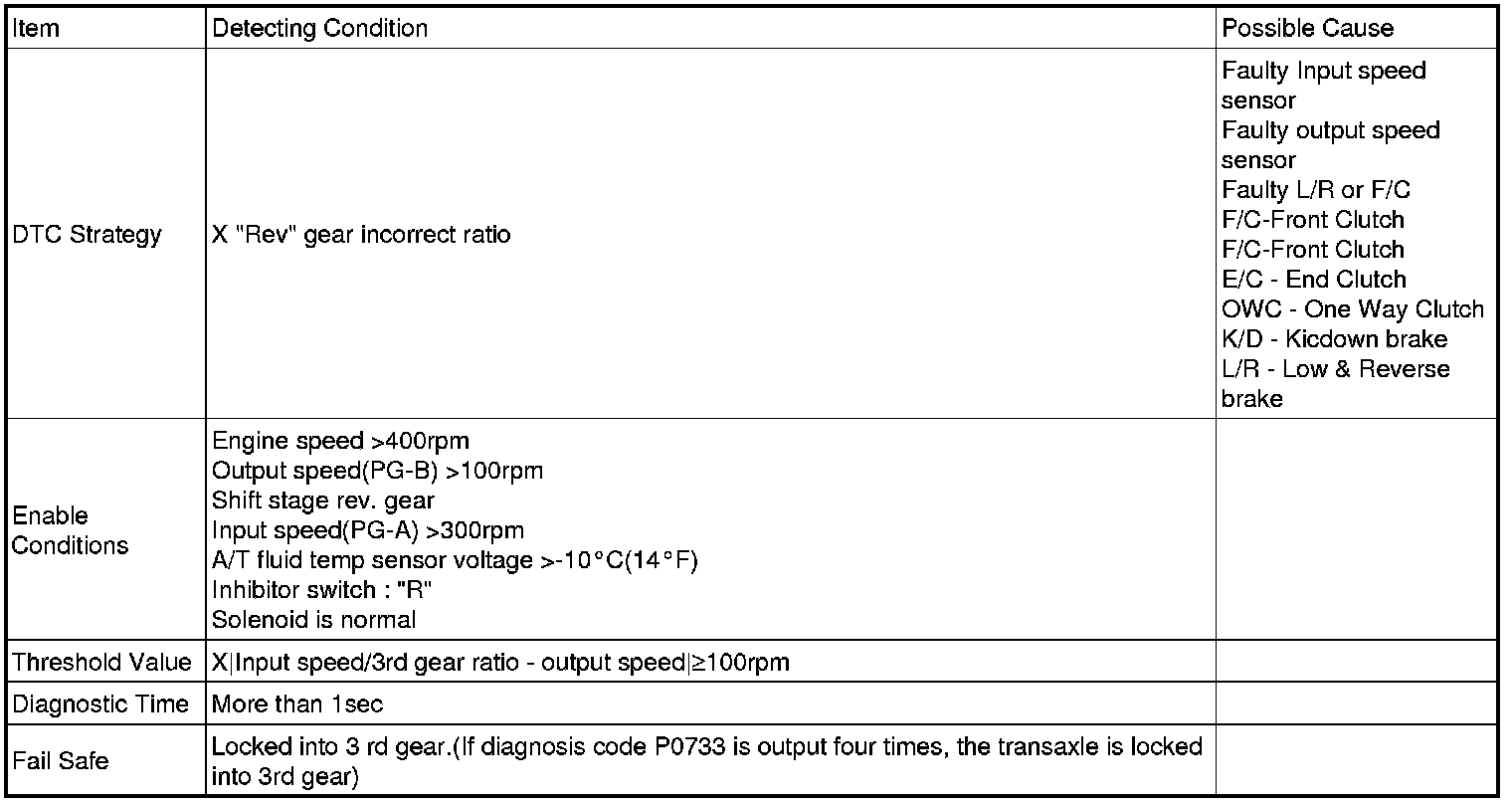

DTC Detecting Condition

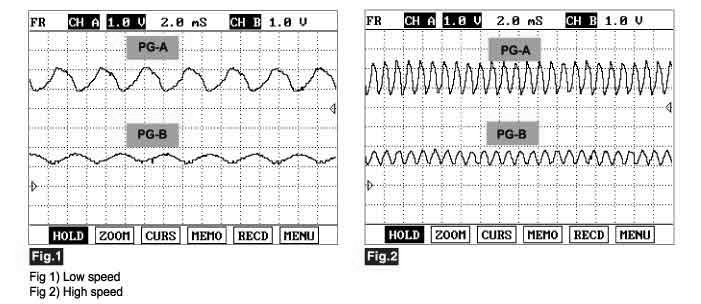

Signal Waveform
