Monitor DTC Status

P0716 A/T Input Speed Sensor High Input

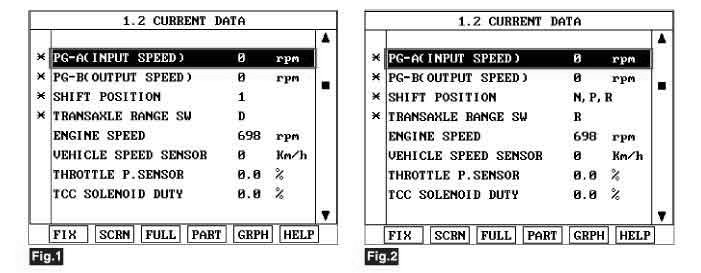

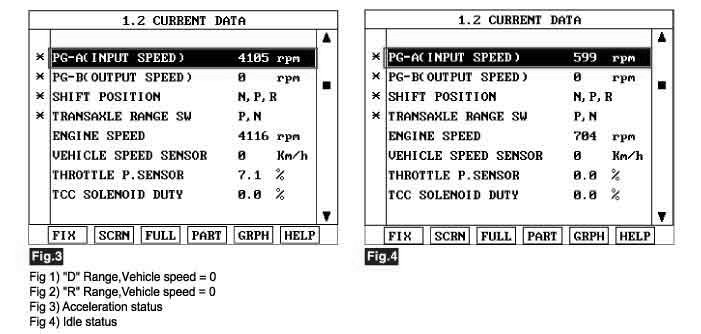

Scantool Diagnostics - Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR" parameter on the scantool
4. Driving at speed of over 19 Mile (30 km) /h
A. Specification : Increasing Gradually








5. Does "INPUT SPEED SENSOR (PG-A)" follow the referance data?
YES
1) Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "Verification Vehicle Repair" procedure
NO
1) Go to "W/Harness Inspection" procedure
