P0708 Transaxle Range Switch Circuit High Input

General Information

Component Location





General Description

The Transaxle Range Switch sends the shift lever position information to the TCM using a 12 V (battery voltage) signal. When the shift lever is in the D (Drive) position the output signal of Transaxle Range Switch is 12 V and in all other positions the voltage is 0 V. The TCM judges the shift lever position by reading all signals, for the Transaxle Range Switch, simultaneously.

DTC Description

The PCM/TCM sets this code when the Transaxle Range Switch outputs multiple signals for an extended period of time.

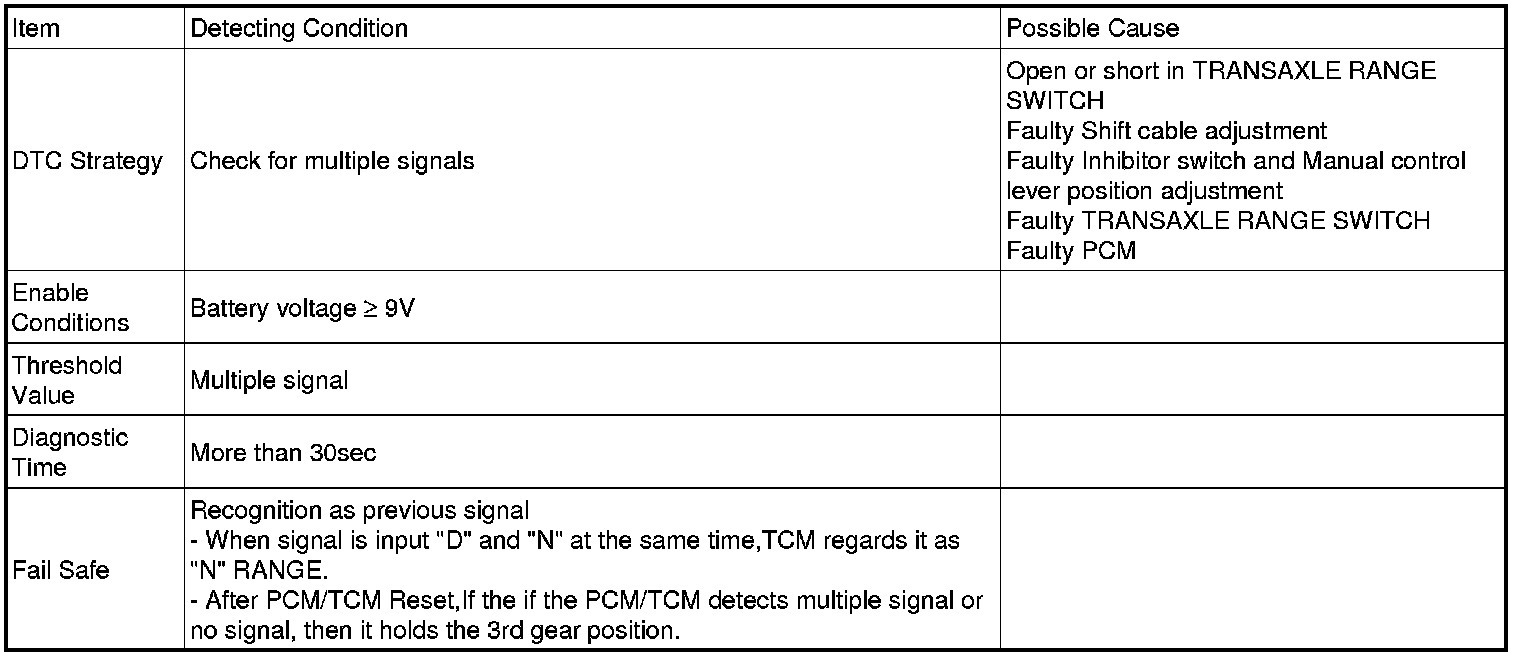

DTC Detecting Condition





Schematic Diagram





Signal Waveform
