Component Inspection

P0707 Transaxle Range Switch Circuit Low Input

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "TRANSAXLE RANGE SWITCH"

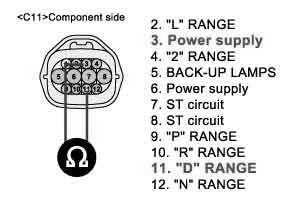

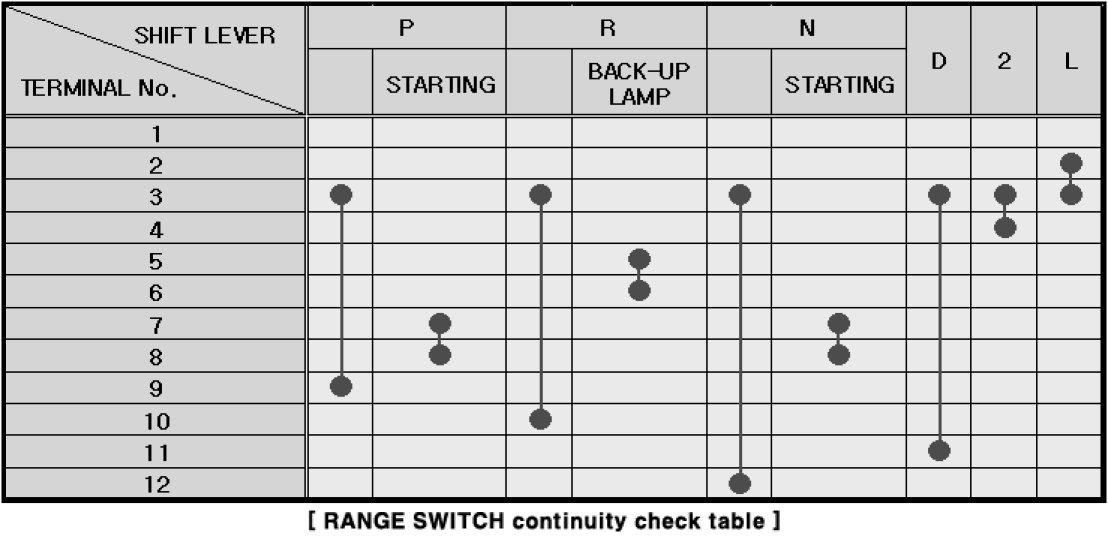

3. Measure the resistance between each terminal of the sensor.
A. Specification : approx. 0 Ohms








4. Is resistance within specifications?
YES
1) Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and Go to "Verification of Vehicle Repair" procedure.
NO
1) Replace "TRANSAXLE RANGE SWITCH" as necessary and Go to "Verification Vehicle Repair" procedure
