General Information

P0650 Malfunction Indicator Lamp (MIL) Control Circuit

General Information

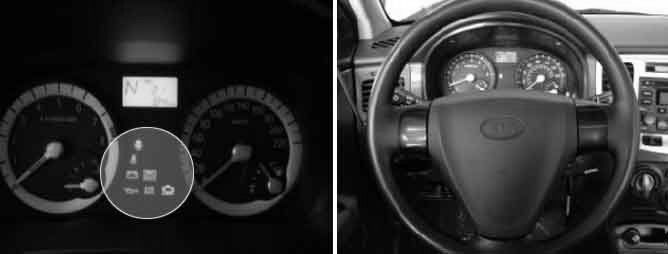

Component Location





General Description

A Malfunction Indicator Lamp (MIL) is used to notify the driver of malfunctions within the monitored powertrain (engine and transaxle) systems that have an effect on emissions.

DTC Description

If there is Open, Short to ground or Short to power in MIL circuit, PCM sets DTC P0650.

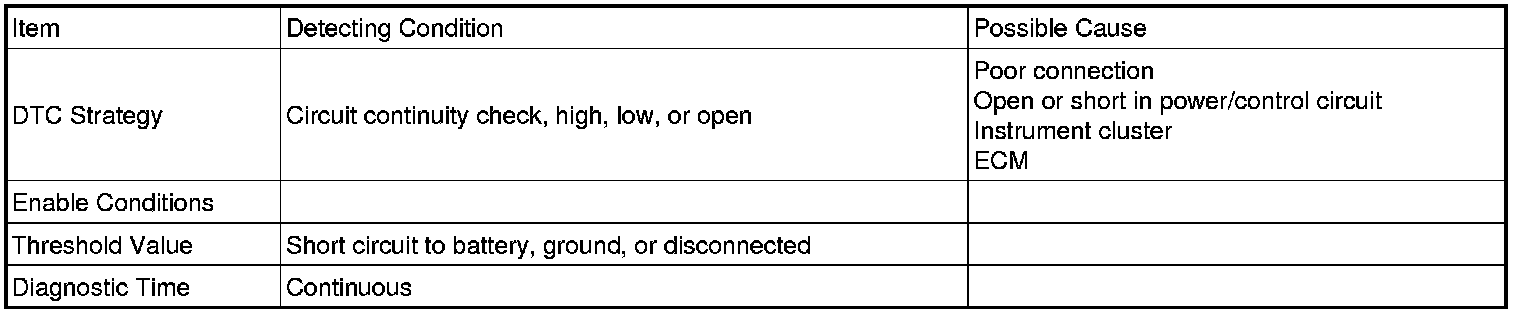

DTC Detecting Condition

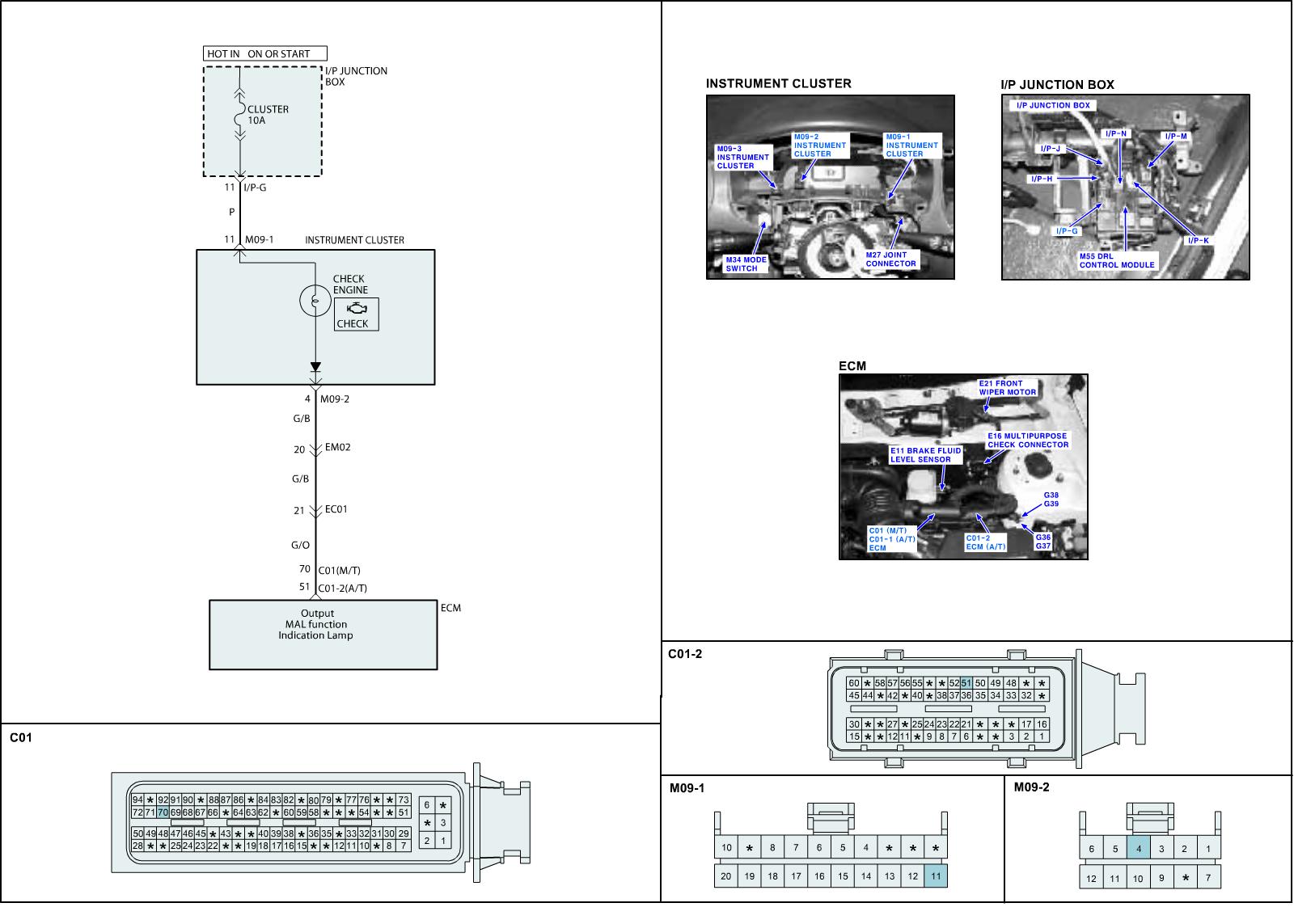

Schematic Diagram
