P0563 System Voltage High

General Information

Component Location





General Description

The Main Relay voltage is monitored for high or low voltage values that may indicate main relay, main relay circuit, or engine electrical system malfunctions.

DTC Description

If the system voltage is over 17 V during 0.2 sec, PCM sets DTC P0563.

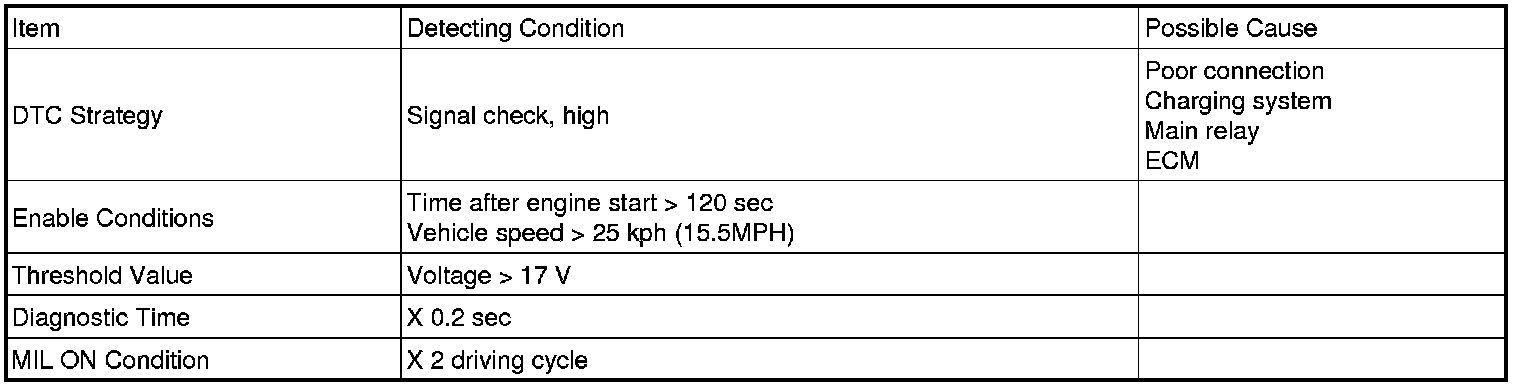

DTC Detecting Condition





Schematic Diagram
