General Information

P0462 Fuel Level Sensor A Circuit Low Input

General Information

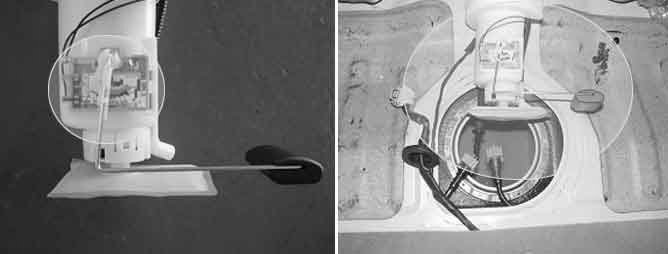

Component Location





General Description

The PCM uses the fuel level input in order to calculate the expected vapor pressure within the fuel system. The vapor pressure varies as the fuel level change. The vapor pressure is critical in determining if the evaporative emission system is operating properly. The PCM also uses the fuel level in order to determine if the fuel level is too high or too low to be able to accurately detect evaporative system malfunctions.

DTC Description

If the signal voltage is below 0.1 V during 60 sec or more, PCM sets DTC P0462.

DTC Detecting Condition

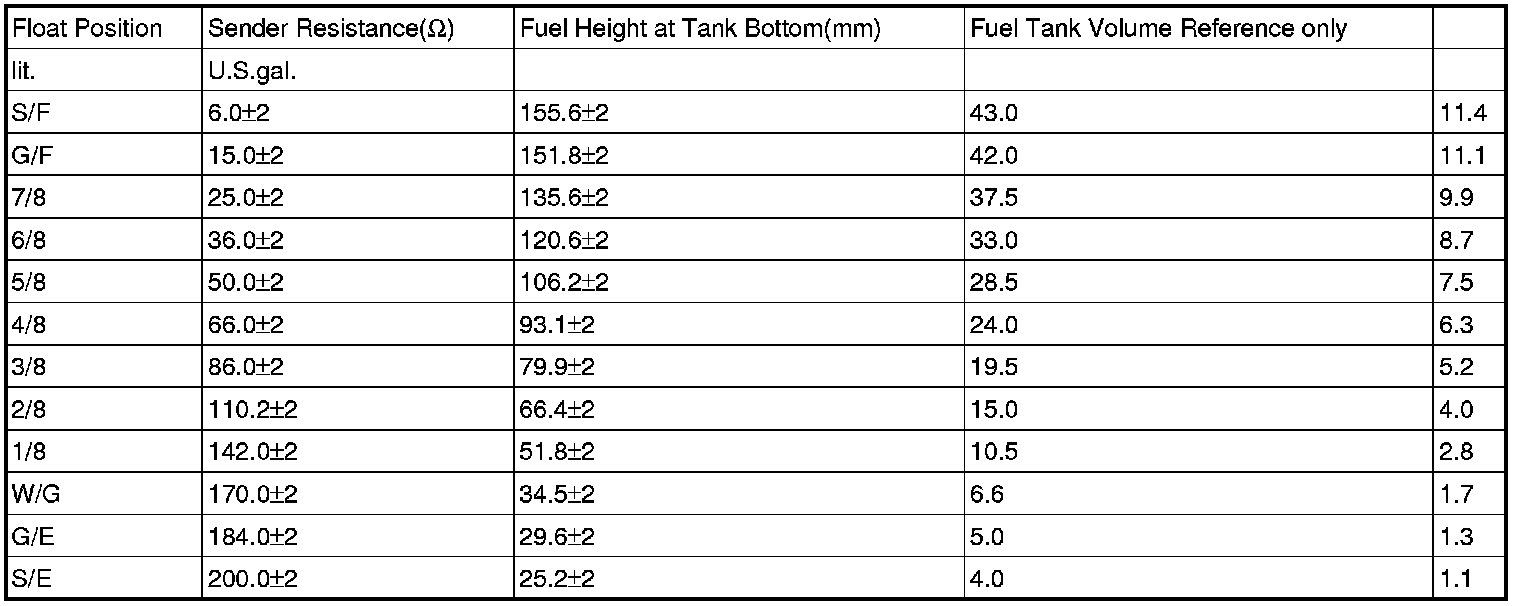

Specification





CAUTION:
S/F : Sensor Full
G/F : Gauge Full
W/G : Warning Point
G/E : Gauge End
S/E : Sensor End
7/8,6/8,5/8,4/8,3/8,2/8,1/8 : Indicator position in cluster

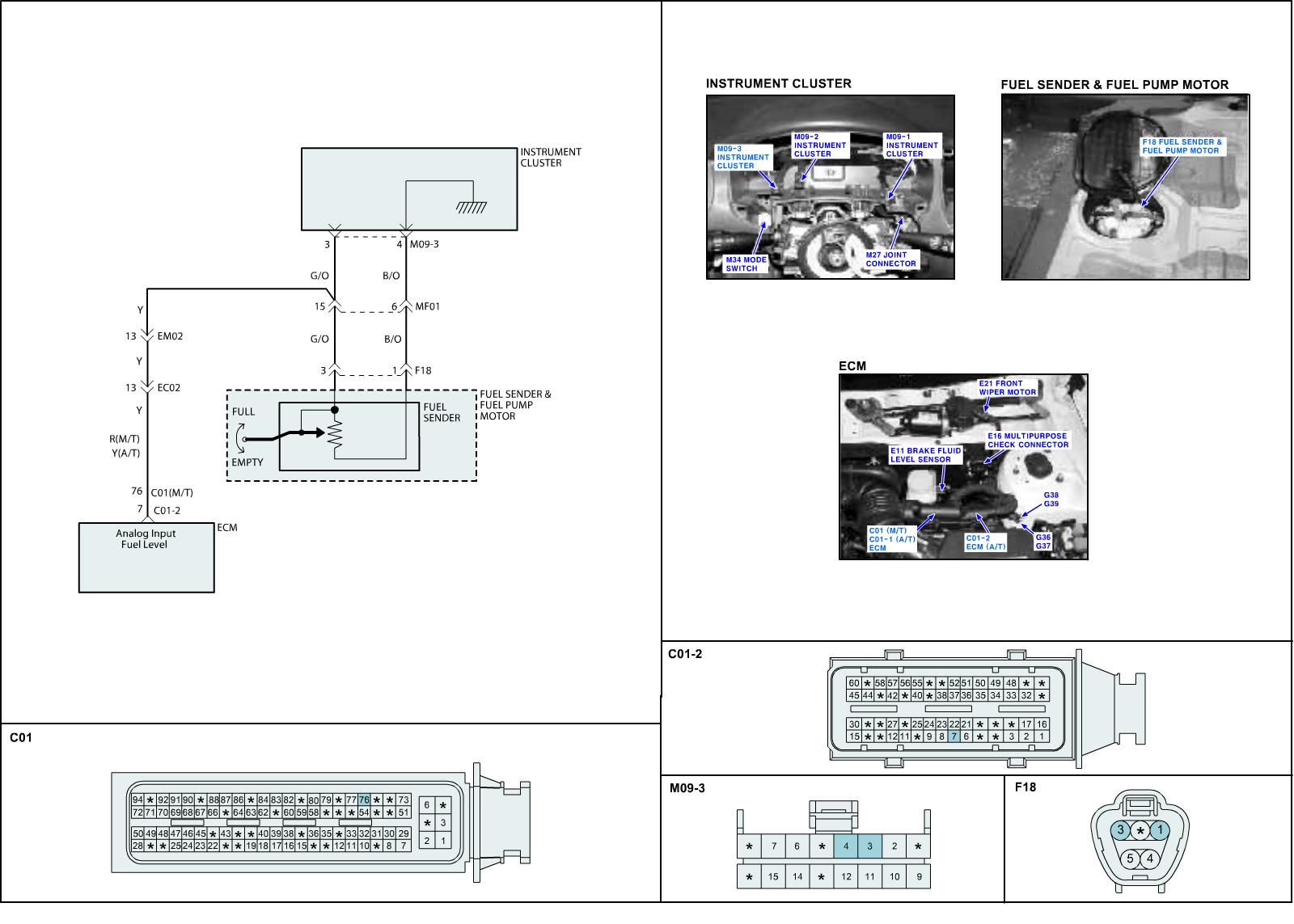

Schematic Diagram
