General Information

P0453 Evaporative Emission System Pressure Sensor/Switch High Input

General Information

Component Location





General Description

The evaporative emissions system prevents hydrocarbon (HC) vapors from the fuel tank from escaping into the atmosphere where they could form photochemical smog. The fuel tank pressure sensor is a component of the evaporative emission system.
The Tank Pressure Sensor converts fuel tank pressure to a proportional analog voltage signal which is read by the engine controller for evaluation during execution of the Evaporative System Diagnostic. The Tank Pressure may be below atmospheric pressure (i.e. a vacuum) or above atmospheric pressure. The fuel tank pressure is used to measure the difference between the air pressure (or vacuum) in the fuel tank and the ambient air pressure. PCM supplies a 5-volt reference and a ground to the sensor, which allows the sensor's output voltage to range from 0.1 to 4.9 volts.

DTC Description

If signal input is over 39.06 hPa (81.6 lbf/ft2), PCM sets DTC P0453.

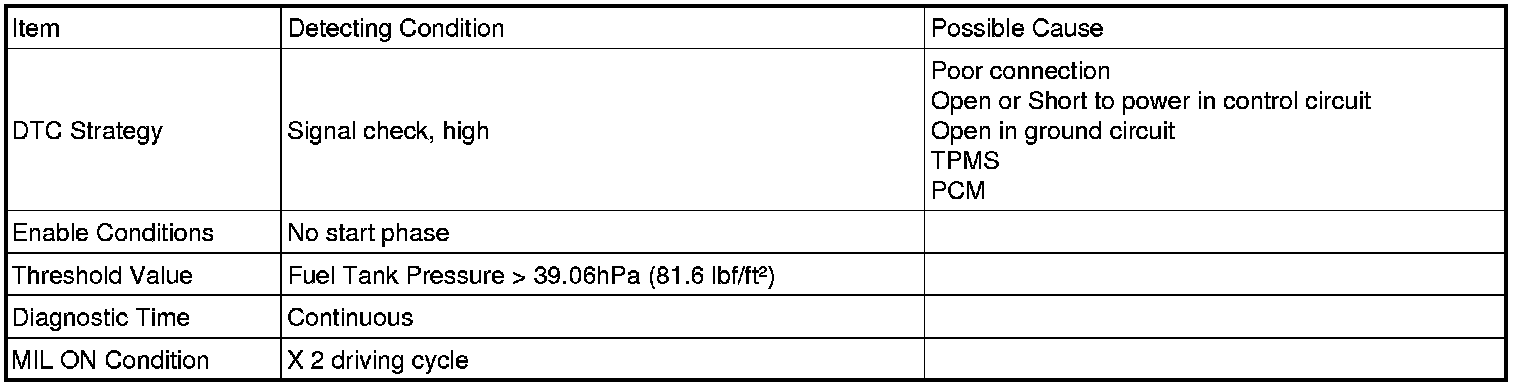

DTC Detecting Condition

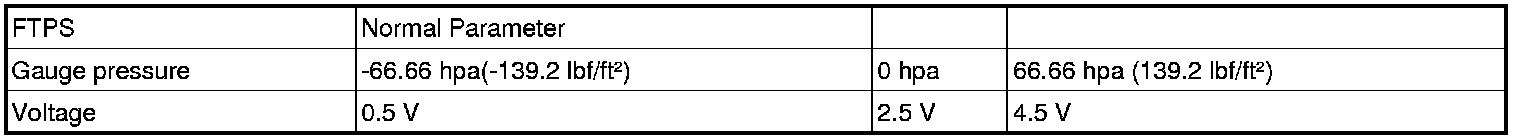

Specification





Schematic Diagram
