General Information

P0301 Cylinder 1-Misfire Detected

General Information

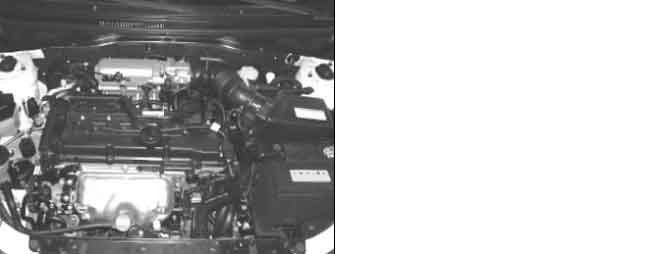

Component Location





General Description

Misfires can be caused by lack of combustion in a cylinder due to absence of spark, poor fuel metering, poor compression, or many other causes. Even a small number of misfires may result in excessive exhaust emissions due to the unburned mixture. Increased misfire rates cause damage to the catalytic converter. The PCM monitors the crankshaft speed variation to determine if any misfiring generated. The PCM identifies the specific cylinder in which the misfire has occurred and counts individual misfire events by monitoring changes in the crankshaft rotation for each cylinder. A random misfire indicates two or more cylinders are misfiring.

DTC Description

If a misfire exists that exceeds the threshold value, P0301 is set.

DTC Detecting Condition





Specification

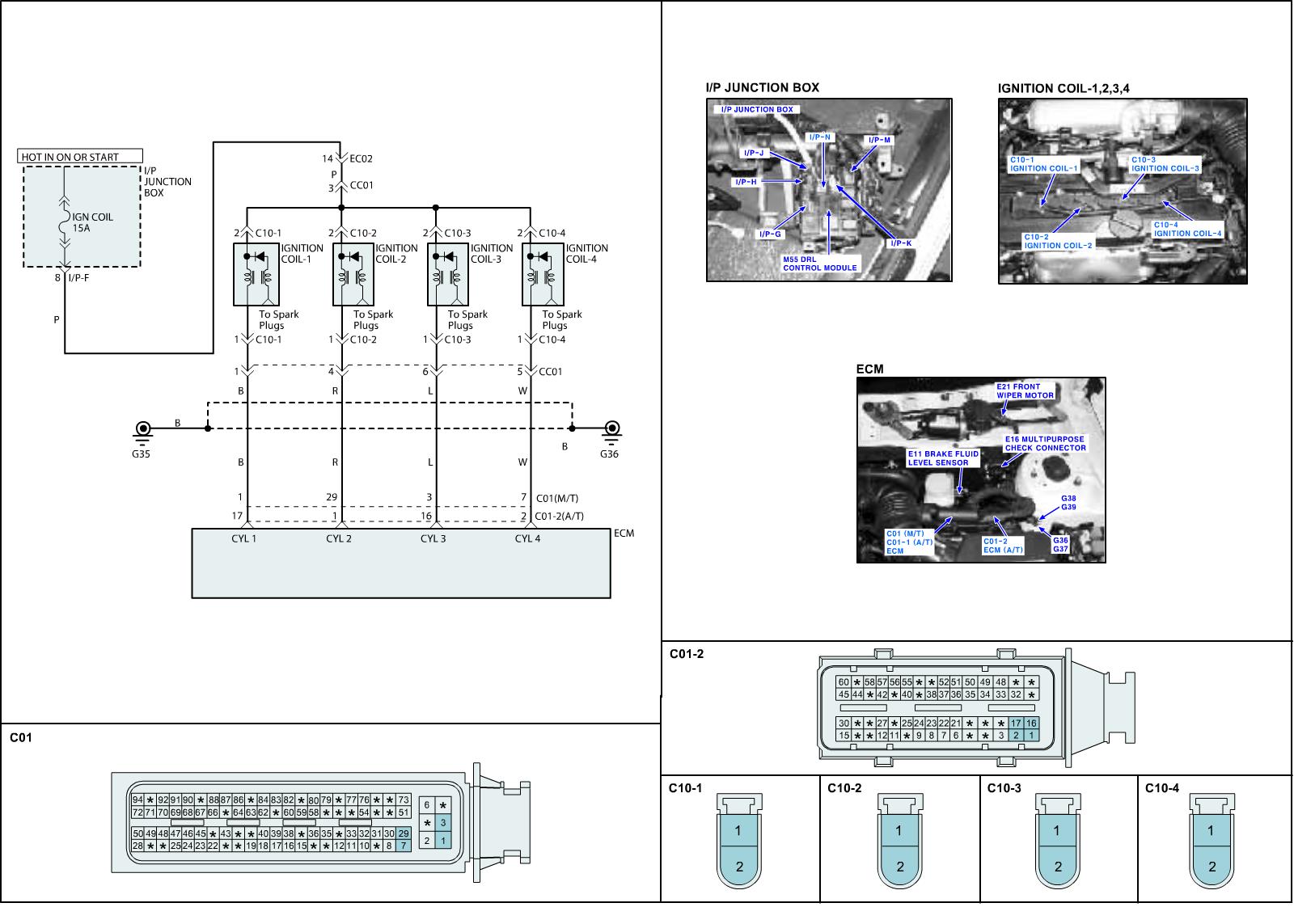

Schematic Diagram
