P0116 Engine Coolant Temperature Circuit Range / Performance

General Information

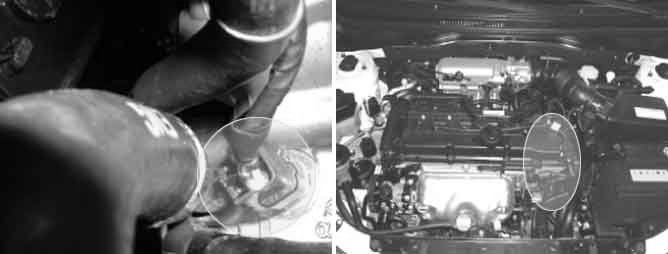

Component Location





General Description

The Engine Coolant Temperature (ECT) Sensor measures the temperature of engine coolant. The Engine Coolant Temperature (ECT) Sensor is located near the thermostat housing of the cylinder head. ECT Sensor is a thermistor (A Variable Resistor that Changes Along with ECT) in series with a fixed resistor in the Engine Control Module (ECM). The ECM applies 5 volts to the ECT sensor. The ECM monitors the voltage across the ECT sensor and converts it into a temperature reading. When the engine is cold the ECT sensor resistance is high, and when the engine is warm the ECT sensor resistance is low. Therefore, when the engine is cold the ECM will receive a high voltage input, and when the engine is warm the ECM will receive a low voltage input. The signal from ECT sensor is used for Injection control, ignition timing, idle speed and cooling fan control.

DTC Description

If the deviation between the measured value and model value exceeds the threshold, P0116 is set.

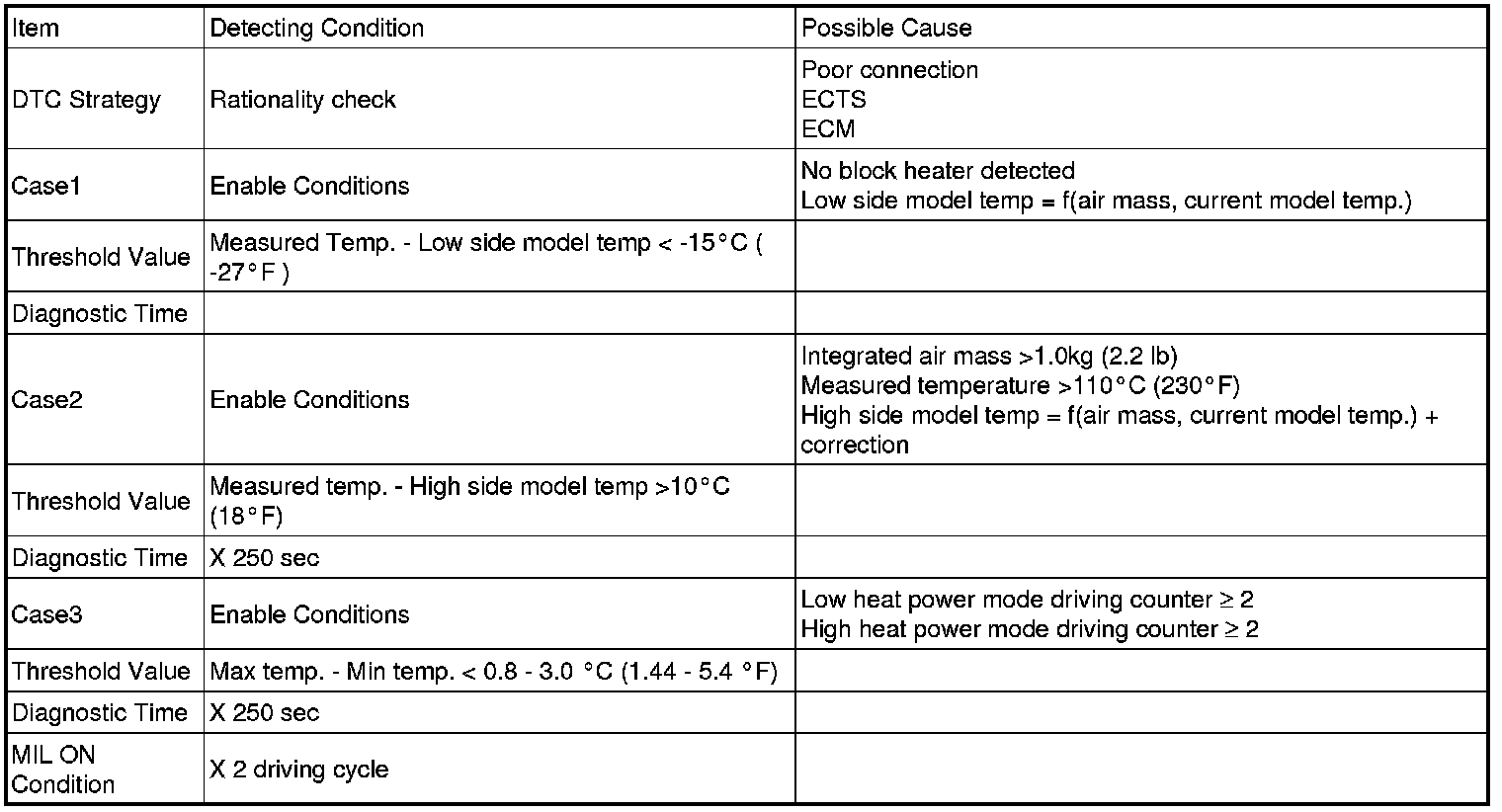

DTC Detecting Condition

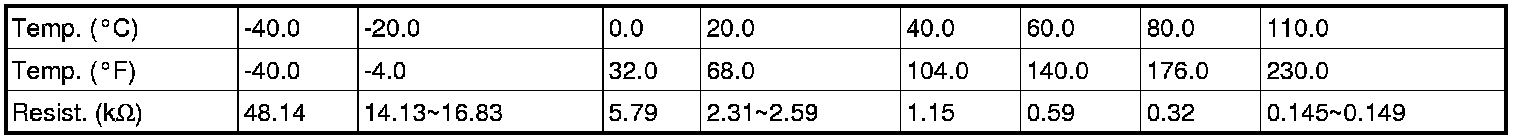

Specification

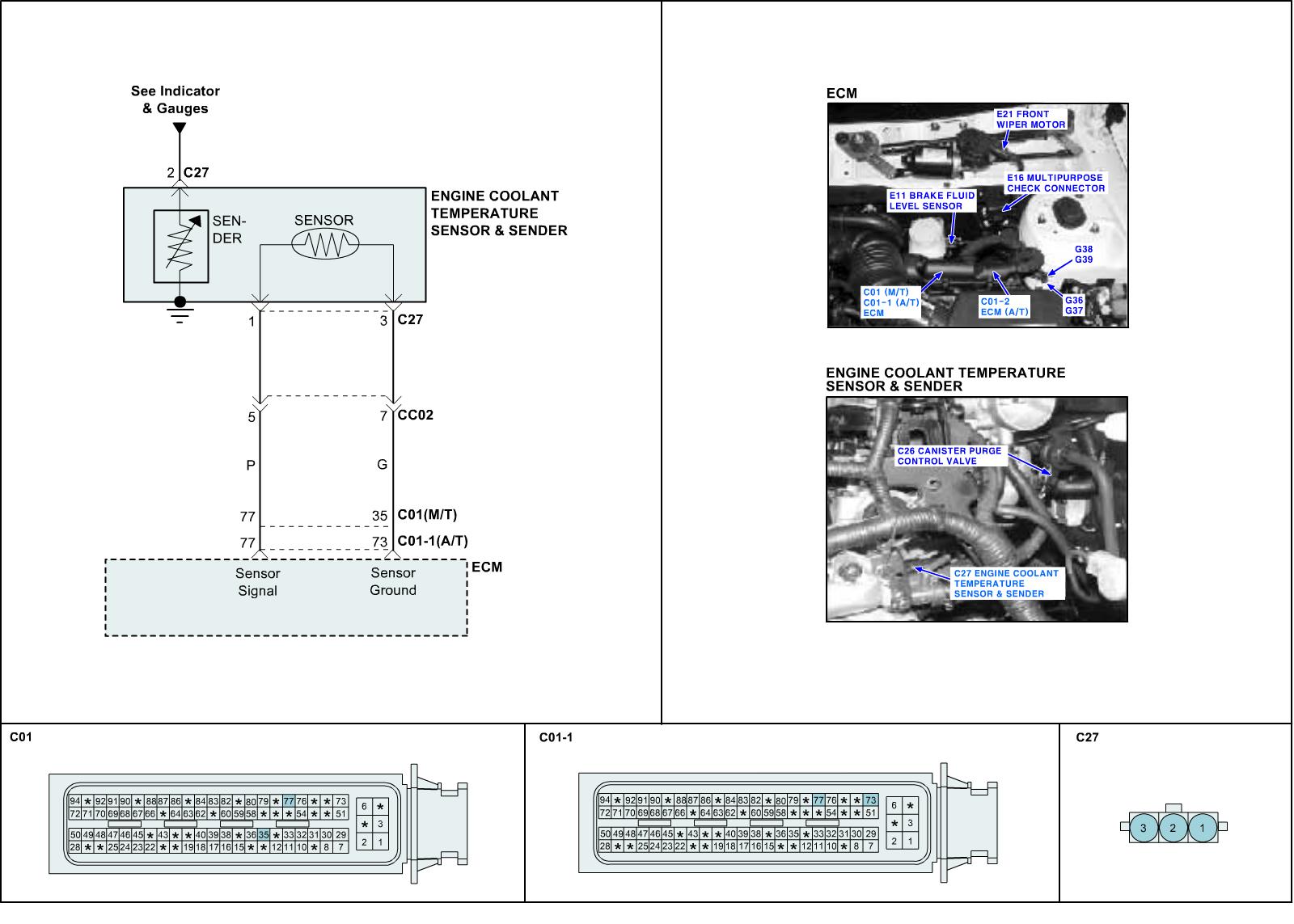

Schematic Diagram
