P0106 Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance

General Information

Component Location





General Description

The amount of intake air flow must be inputted to PCM in order to determine the fuel injection quantity. MAPS (Manifold Absolute Pressure) calculates the amount of air indirectly as measuring the pressure inside of intake manifold. This mechanism is also called Speed-Density Type.
MAPS transfers analog output signal which is proportional to the change of intake manifold pressure, then, with this signal and RPM, PCM calculates the amount of intake air flow.
MAPS is mounted on surge tank to measure the pressure inside of intake manifold, and it consists of a piezo electric element and hybrid IC which amplifies output signal from the element. A piezo electric element is a sort of a diaphragm using piezo electric effect. One side of the diaphragm is surrounded with vacuum chamber while intake pressure is applied to the other side. Thus, signals are output by the transformation of diaphragm according to the change of pressure inside of intake manifold.

DTC Description

If intake manifold pressure is lower than the minimum threshold value or higher than the maximum threshold value according to RPM and TPS under normal TPS signal input condition, ECM sets DTC P0106.

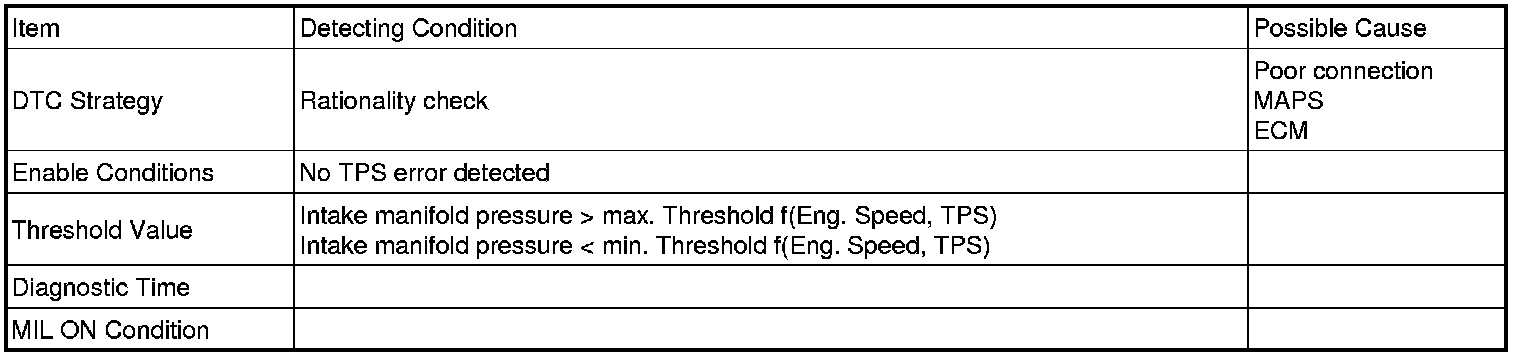

DTC Detecting Condition





Specification





Acceptable temperature range : (23±5) °C

Schematic Diagram





Signal Waveform
