Component Inspection





C2112 Valve Relay Error

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Engine "ON".

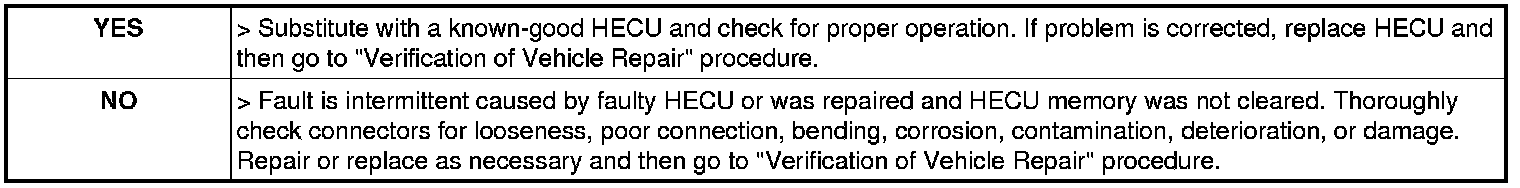

3. Does warning lamp remain On?
