Component Inspection





C1604 ECU (Brake System) Hardware error

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Engine "ON".

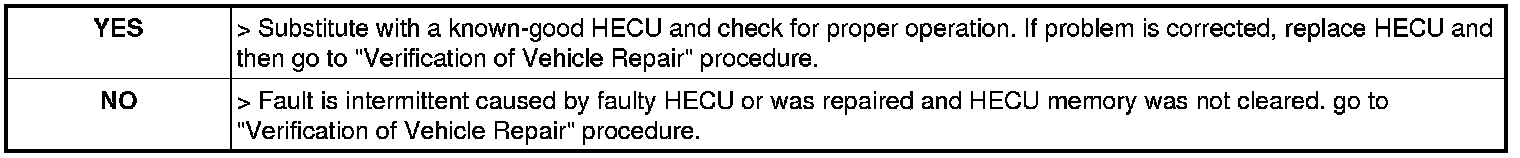

3. Does warning lamp remain On?
