Component Inspection

C1206 Wheel Speed Sensor Rear-LH Open/Short

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Engine "ON".
3. Start and drive vehicle in gear and maintain vehicle speed is approx. 10 km/h or more (6 mph or more)

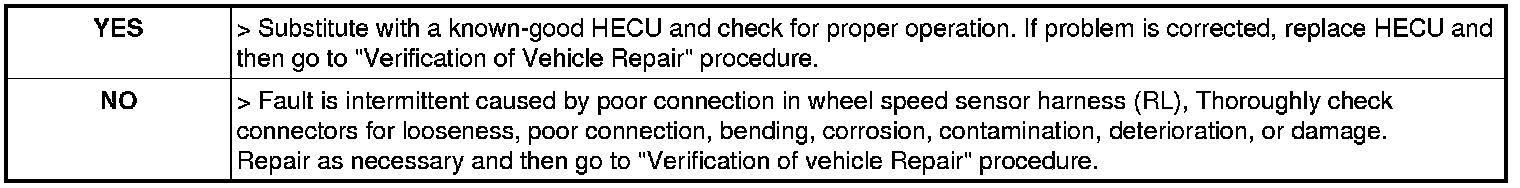

4. Does warning lamp remain On?
