C1205 Wheel Speed Sensor Front-RH Invalid/no Signal

General Information

Component Location





General Description




The wheel speed sensor is the essential component the ABS ECU uses to calculate vehicle speed and to determine whether wheel lock occurs.
For example, rear wheel speed signal is used as a reference value, for vehicle speed, in front wheel drive vehicles, and if a difference between front and rear wheel speed occurs, then ABS control is performed.
Wheel speed sensor is active hall-sensor type and good at temperature and noise characteristic.
Digital wave is produced as tone wheel rotate according as hall sensor principle.
Frequency of duty wave is changed in proportion to rotation of tone wheel and HECU calculate vehicle speed by this frequency.

DTC Description

The ABS ECU monitors the wheel speed sensor signal continuously.
If the sensor signal current is continuously out of the specified range for 140 msec, then the HECU determines that the circuit is open/short, and sets this code.
Warning lamp is turned OFF if the detected fault is not more than when the IG KEY is turned to ON again, and wheel speeds are more than 10 Km/h.

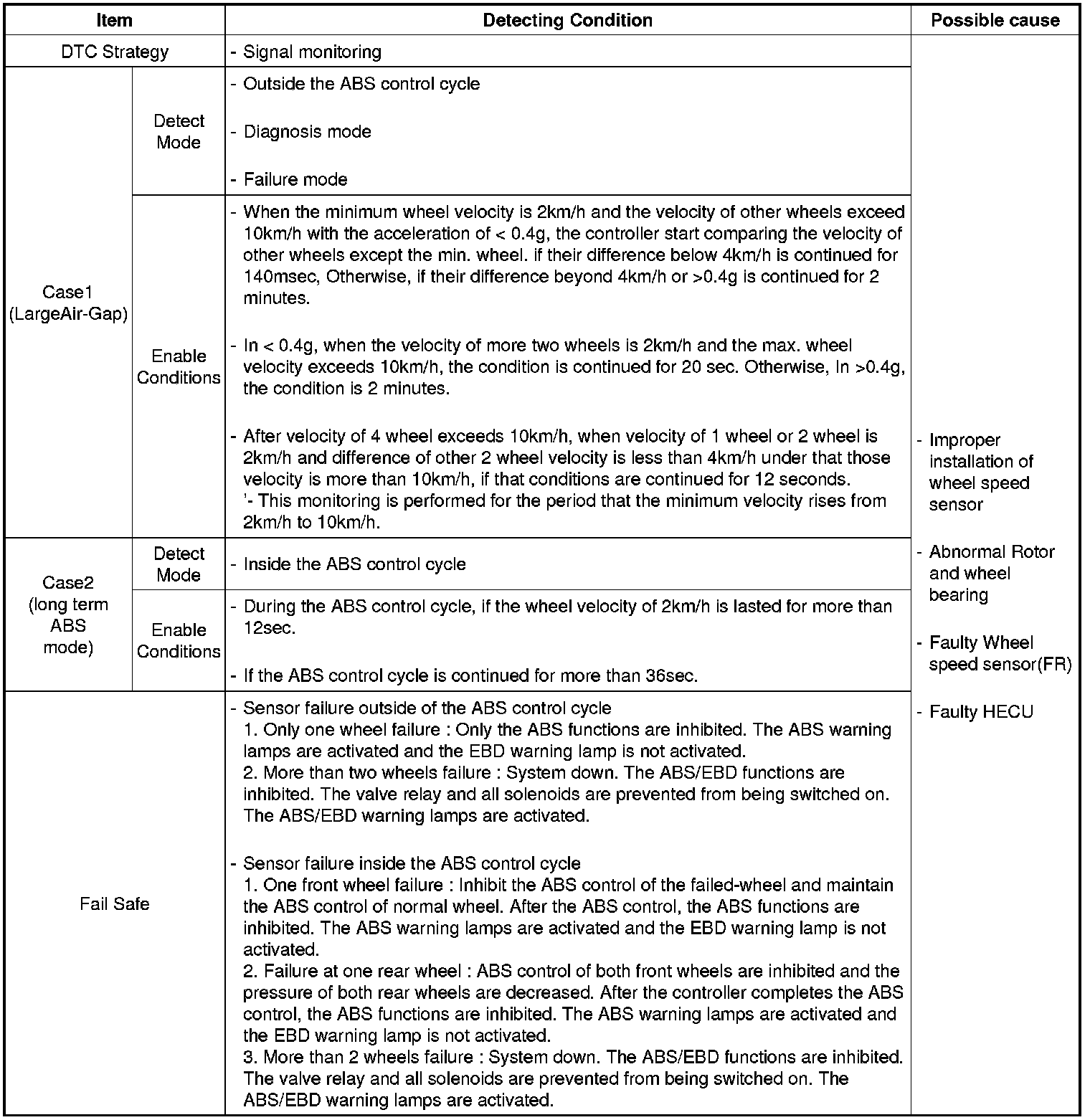

DTC Detecting Condition

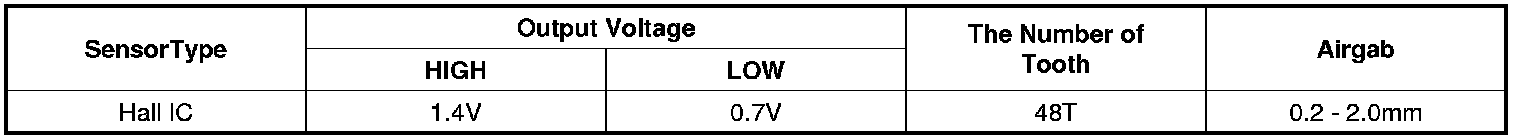

Specification





Diagnostic Circuit Diagram





Signal Waveform & Data




Fig 1) Normal waveform of wheel speed sensor (Active type)
