Component Inspection





C1204 Wheel Speed Sensor Front-RH Range / Performance / Intermittent

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Engine "ON".
3. Start and drive vehicle in gear and maintain vehicle speed is approx. 40 km/h or more (24 mph or more).

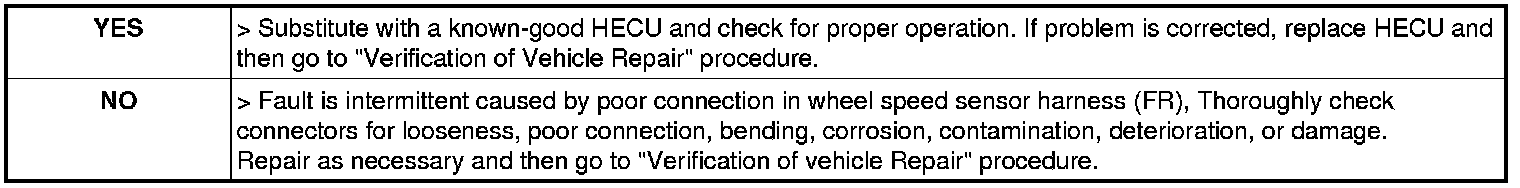

4. Does warning lamp remain On?
