Component Inspection

C1202 Wheel Speed Sensor Front-LH Invalid/no Signal

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Engine "ON".
3. Start and drive vehicle in gear and maintain vehicle speed is approx. 10 km/h or more (6 mph or more).

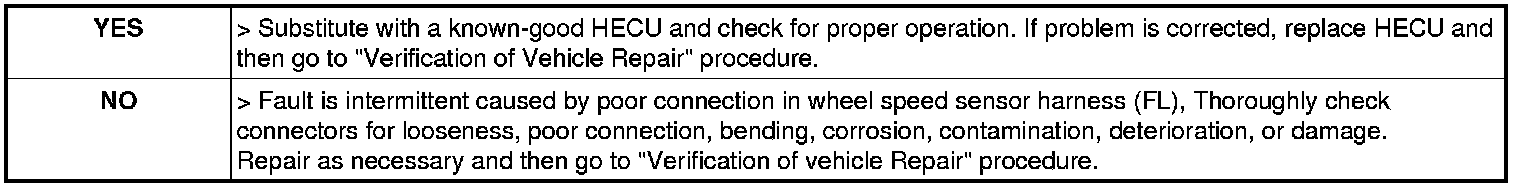

4. Does warning lamp remain On?
