General Information

C1101 Battery Voltage High

General Information

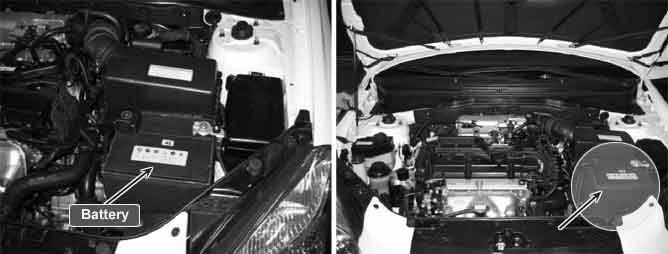

Component Location





General Description

The ABS ECU (Electronic Control Unit) checks the battery voltage to determine, as a safety issue, whether the ABS system can operate normally or not.
The normal battery voltage range is essential for controlling the ABS system as intended.

DTC Description

The ABS ECU monitors battery voltage by reading the value of voltage.
When the voltage is higher than the expected normal value, this code is set, and the ABS/EBD functions are prohibited. If the voltage recovers, to within normal operating ranges, then the controller returns to normal operation as well.

Specification

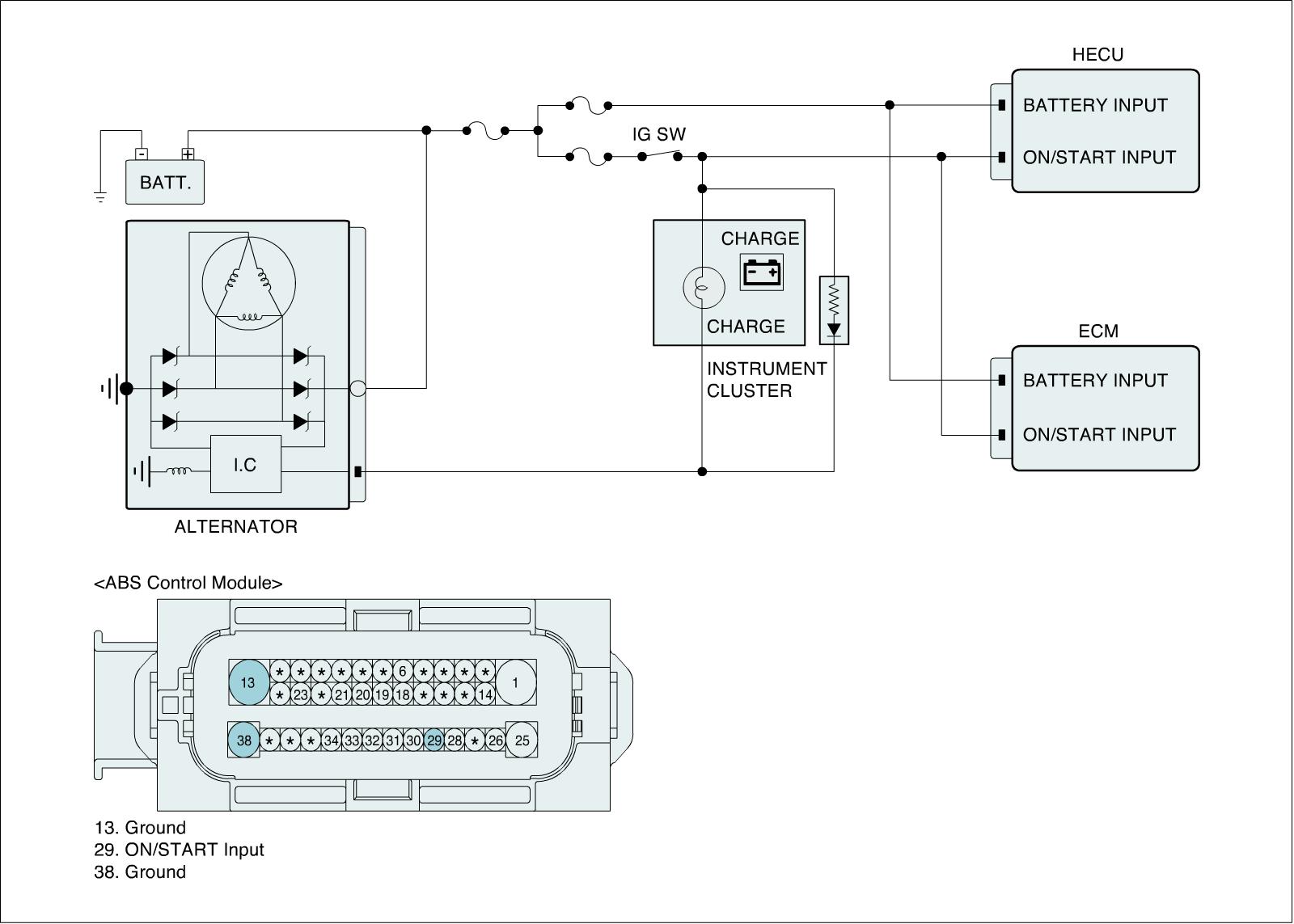

Diagnostic Circuit Diagram
