Monitor DTC Status

B1450 OCS (Occupant Classification System) Wrong ID

Scantool Diagnostics - Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.
5. Adults needs to be sat down on the passenger seat.
6. Monitor the "Passenger side Body Sense sensor ECU Real Time Status Of Current Data" parameter on the scantool.

Fig.1) Passenger side Body Sense sensor ECU Real Time Status Of Current Data : CLASS 2

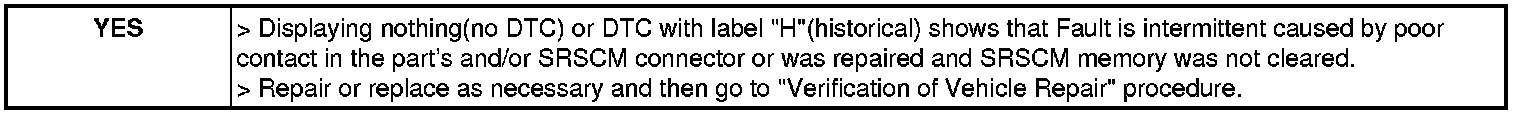

7. Are the parameters displayed correctly?
