General Information

B1388 STPS-Driver open or short to Battery

General Information

Component Location





General Description

STPS located underneath passenger seat detects horizontal position of passenger seat and delivers it to SRSCM. Signal of STPS is the one of major parameters that determine the way dual output type airbag deploys.

DTC Description

The SRSCM sets DTC B1388 if there is a short to power in Driver STPS harness.

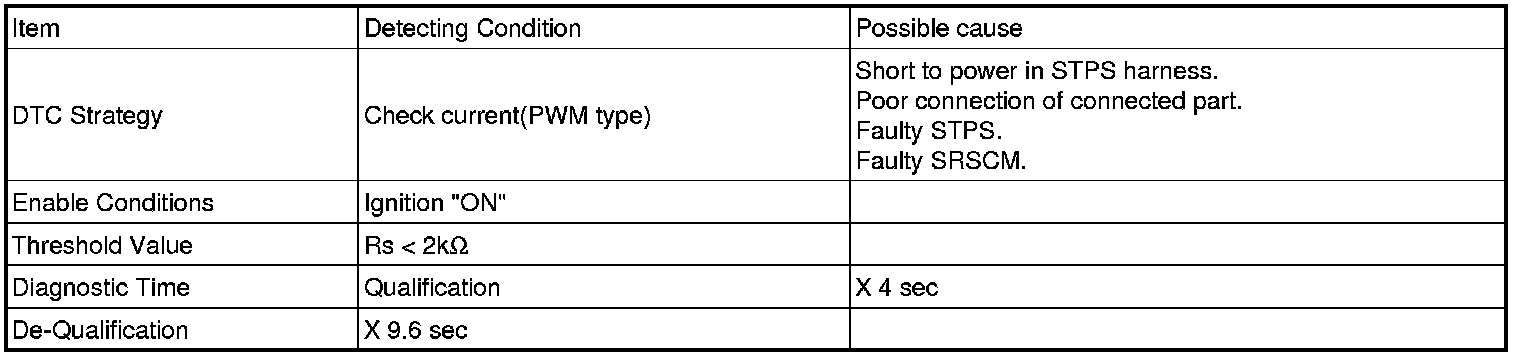

DTC Detecting Condition





Specification





Schematic Diagram
