General Information

B1372 STPS-Passenger instability

General Information

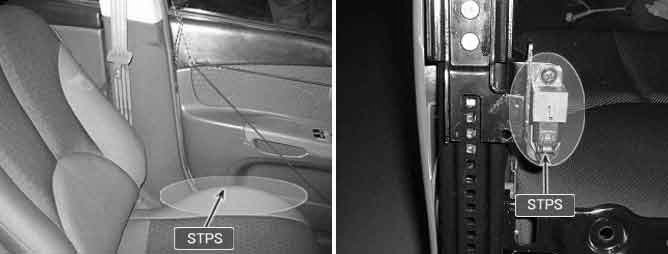

Component Location





General Description

STPS located underneath passenger seat detects horizontal position of passenger seat and delivers it to SRSCM. Signal of STPS is the one of major parameters that determine the way dual output type airbag deploys.

DTC Description

The SRSCM sets DTC B1372 if the value of passenger side STPS changes frequently.

DTC Detecting Condition





Schematic Diagram
