General Information

B1371 STPS-Driver instability

General Information

Component Location





General Description

STPS located underneath driver seat detects horizontal position of driver seat and delivers it to SRSCM. Signal of STPS is the one of major parameters that determine the way dual output type airbag deploys.

DTC Description

The SRSCM sets DTC B1371 if the value of driver side STPS changes frequently.

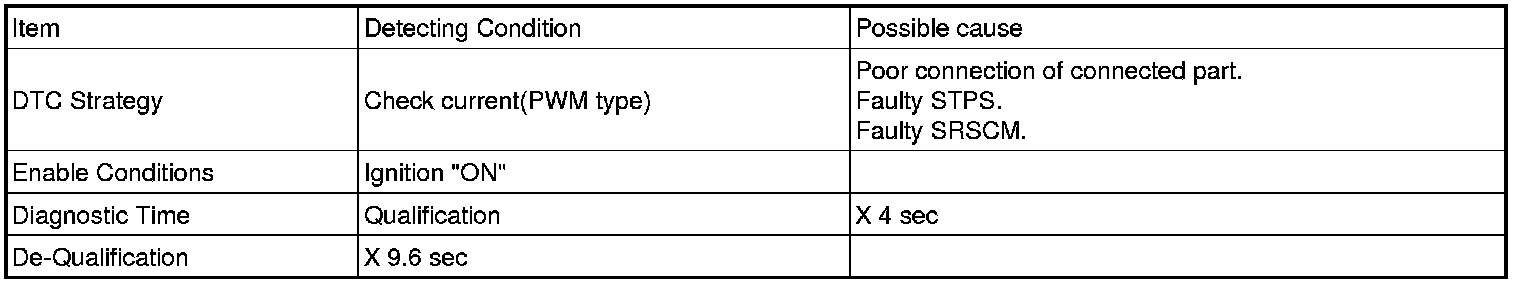

DTC Detecting Condition





Schematic Diagram
