Wheels: Service and Repair

Hub nut tightening sequence

Tighten the hub nuts as follows.

Tightening torque:
88.3 - 107.9N.m (9.0 - 11.0kgf.m, 65.1 - 79.6lb-ft)





CAUTION:
When using an impact gun, final tightening torque should be checked using a torque wrench.

Run out inspection
1. Jack up the vehicle.
2. Measure the wheel Run-out by using a dial indicator as illustration below.

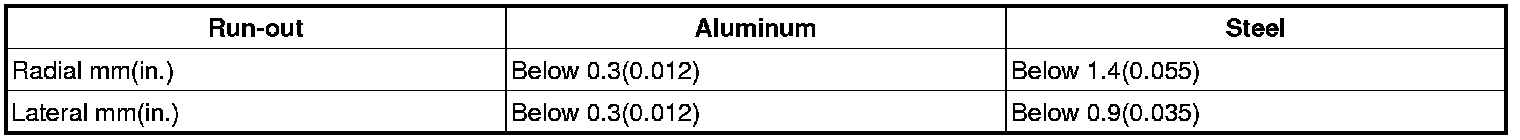

3. If measured value exceeds the standard value, replace the wheel.
