Components and Components Location

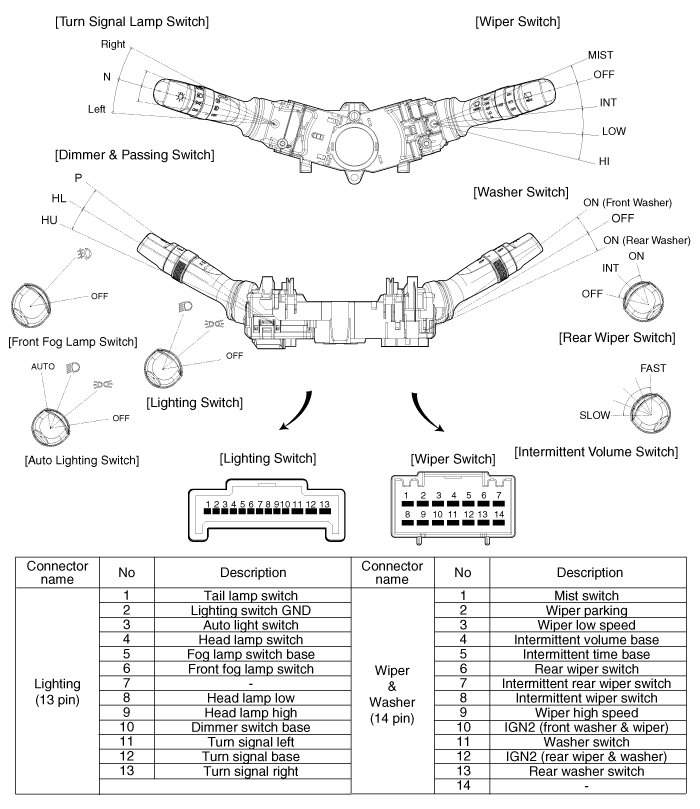

Component(1)

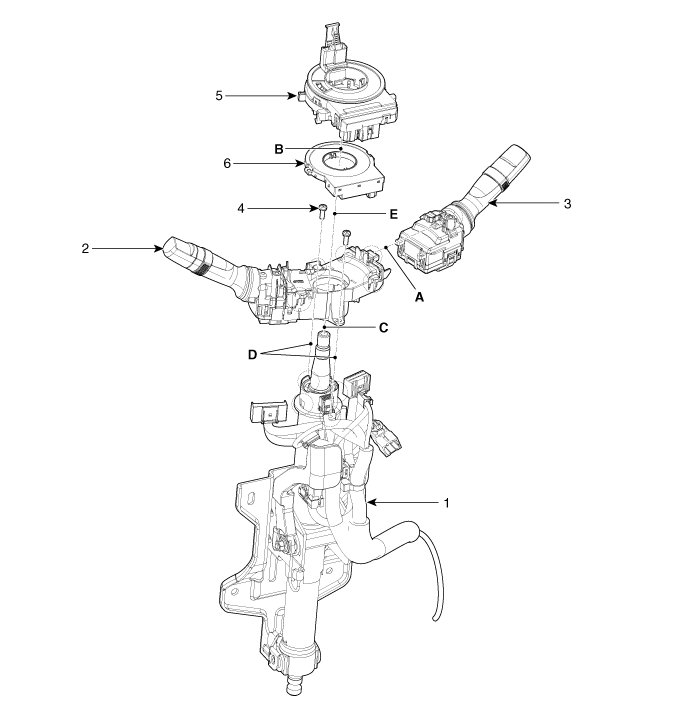

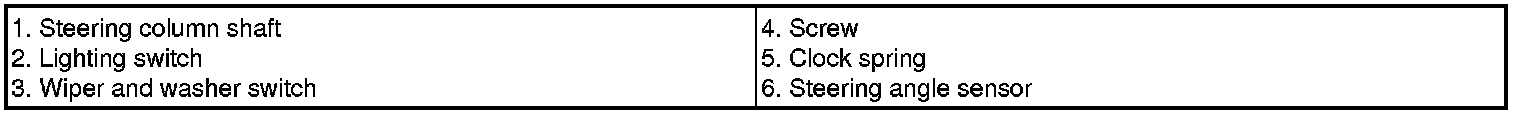

Component(2)




Installation order : A->B->C->D->E>
