Home >> Kia >> 2011 >> Optima L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Specifications

Heating and Air Conditioning: Specifications





Specification

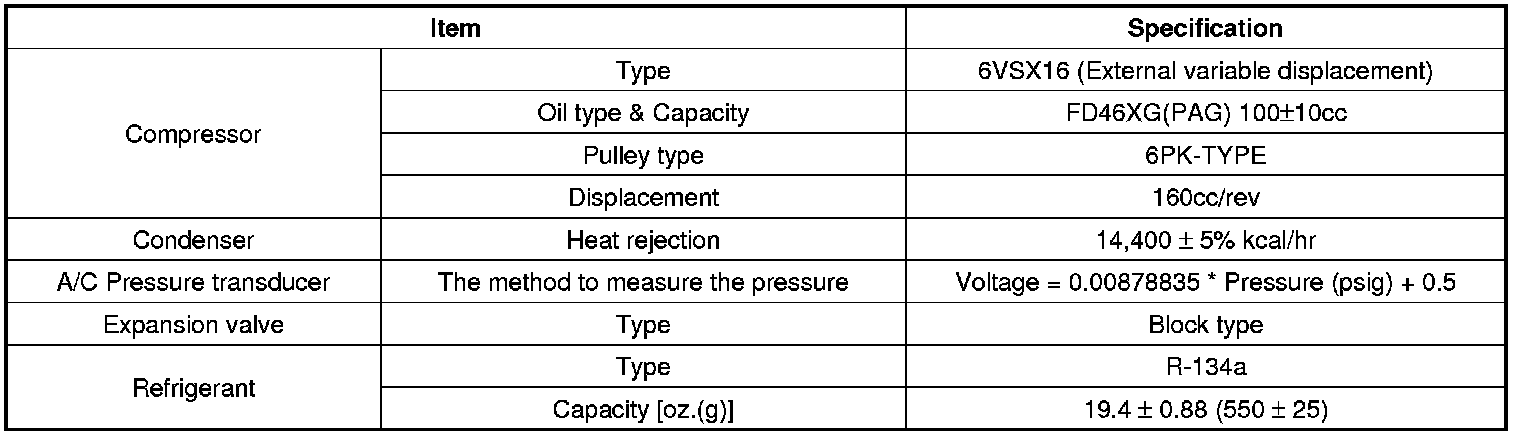

Air Conditioner

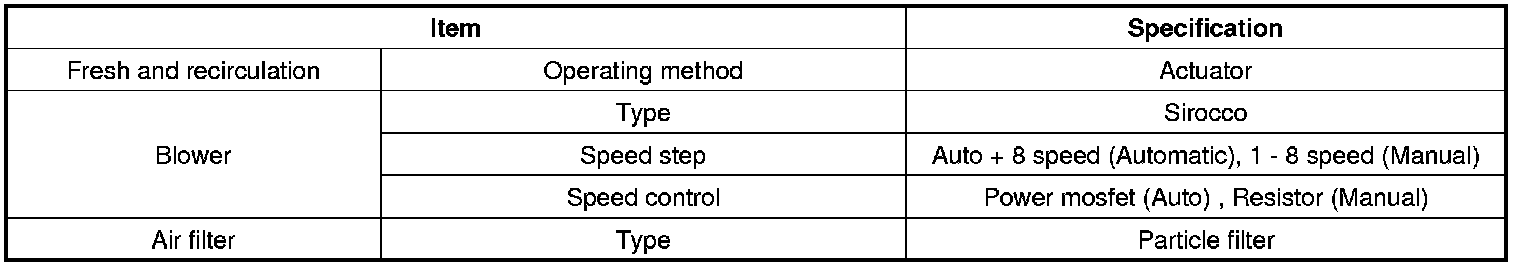

Blower Unit

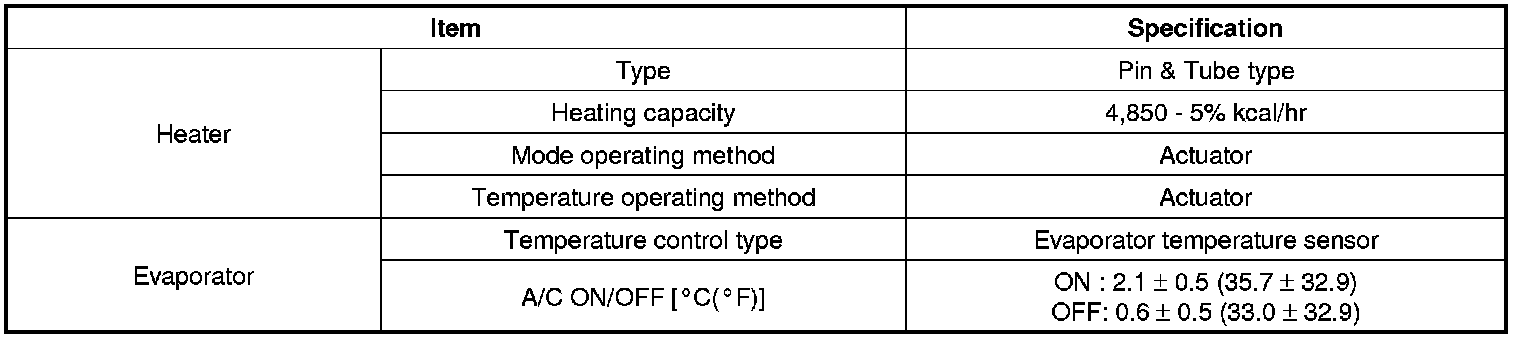

Heater And Evaporator Unit
