Home >> Kia >> 2011 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Restraints and Safety Systems >> System Diagram

System Diagram

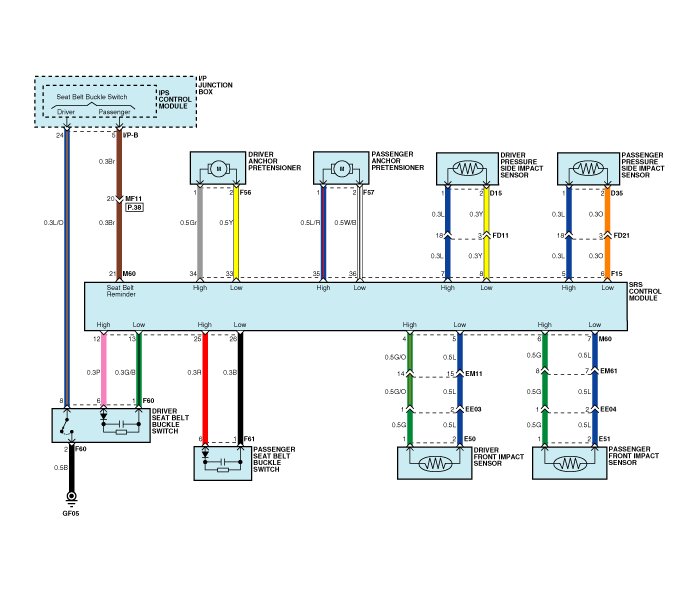

Circuit Diagram (1)

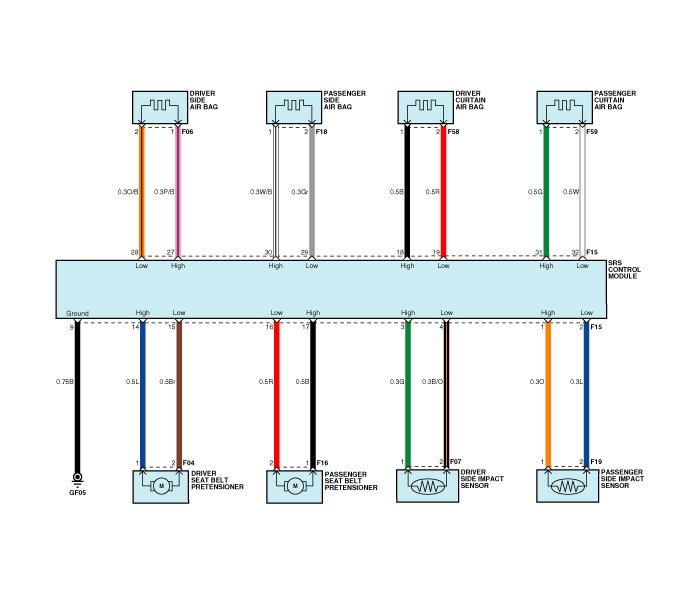

Circuit Diagram (2)

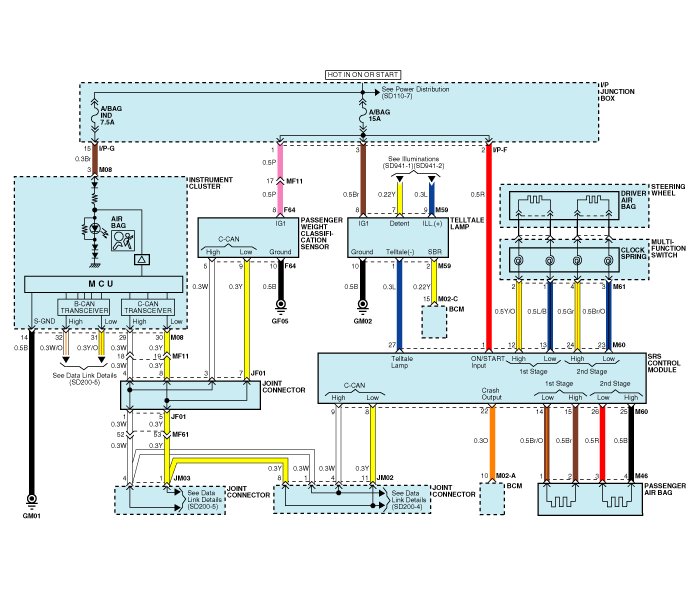

Circuit Diagram (3)

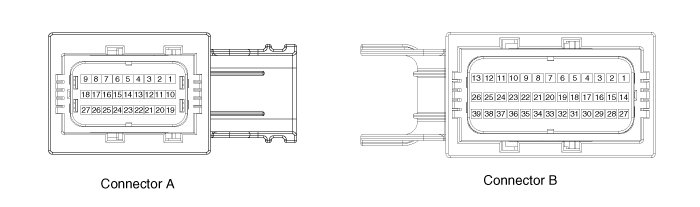

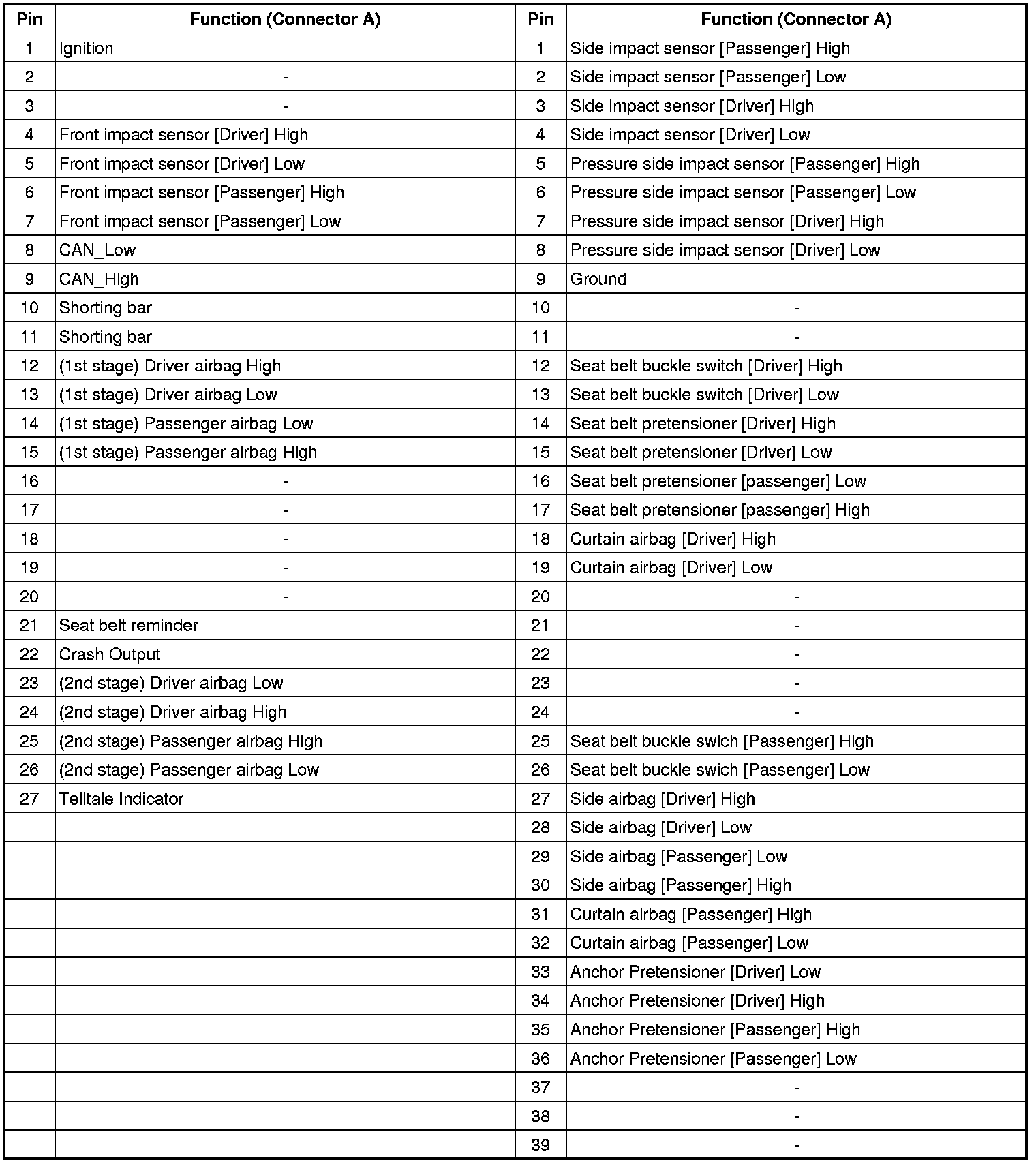

SRSCM Connector Terminal
