Diagram Set SD450 (Automatic Transaxle Control System)

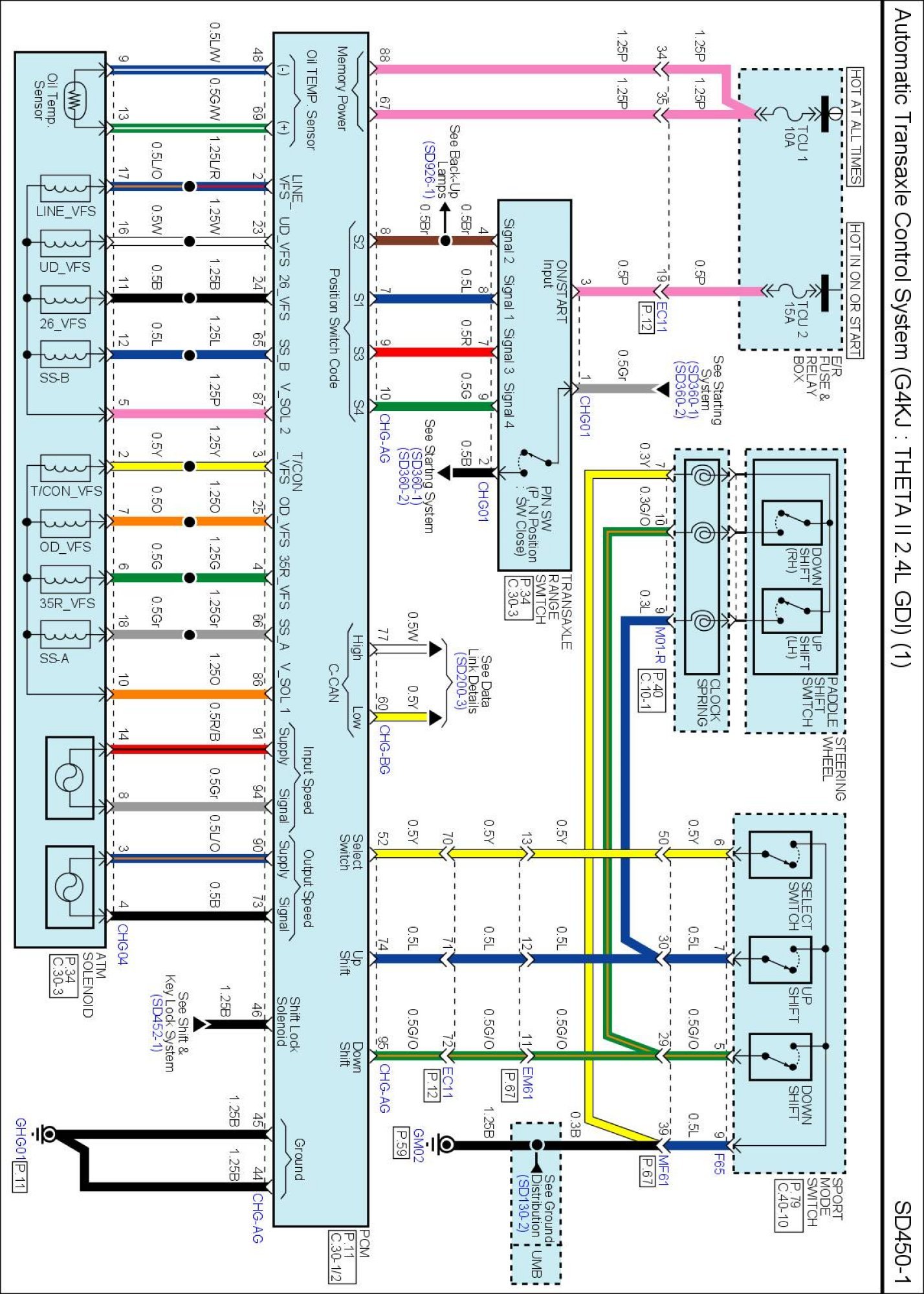

SD450-1 Automatic Transaxle Control System (1):

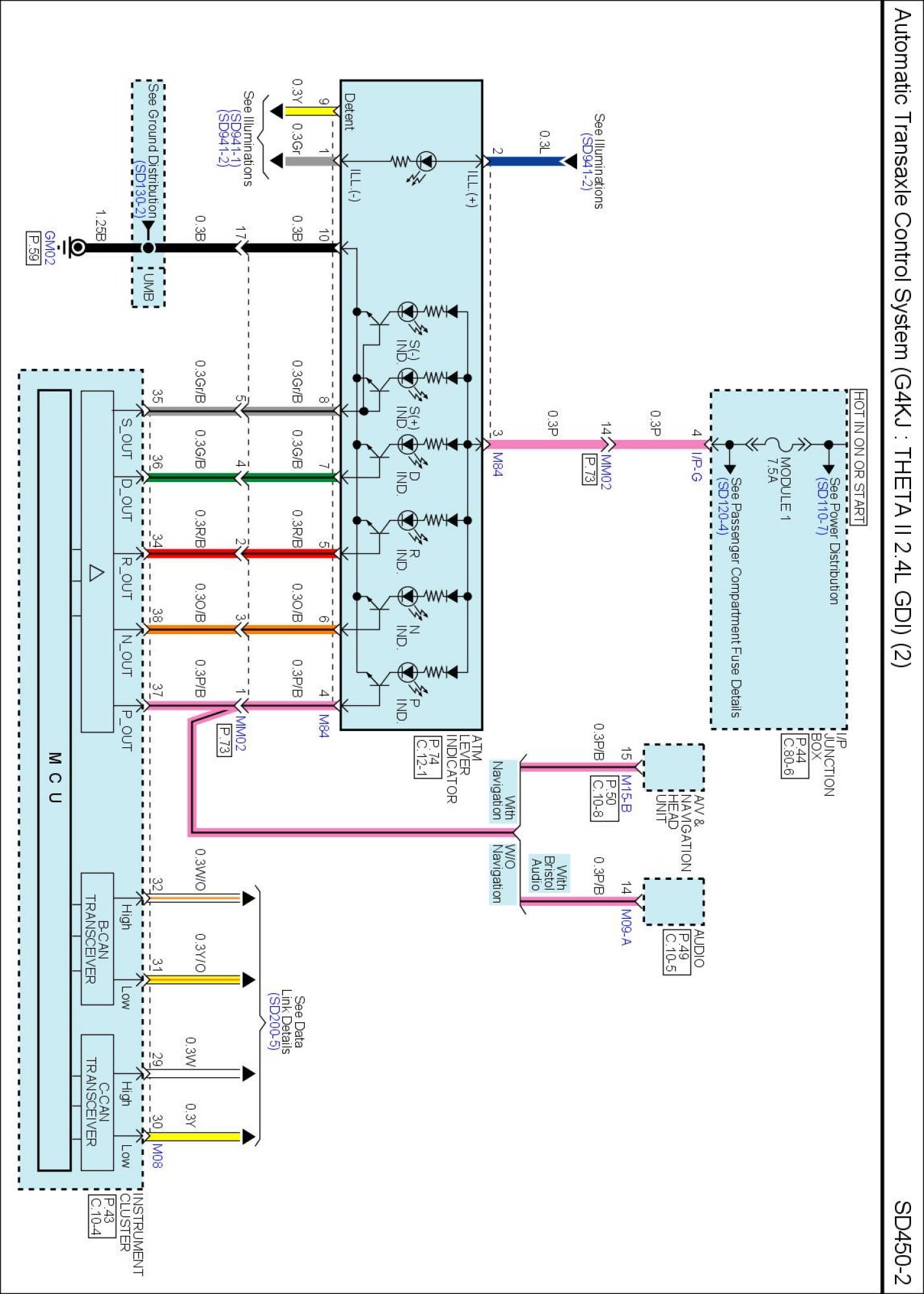

SD450-2 Automatic Transaxle Control System (2):
