Repair Procedures

Replacement

Sunvisor Replacement

CAUTION:
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Put on gloves to protect your hands.

1. Loosen the mounting screws, then remove the sunvisor (A) and retainer (B).




2. Installation is the reverse of removal.

Assist Handle Replacement

CAUTION:
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Put on gloves to protect your hands.

1. Remove the covers (A) and screws, then remove the assist handle (B).




2. Installation is the reverse of removal.

Room Lamp Replacement

CAUTION:
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Put on gloves to protect your hands.

1. Using a screwdriver or remover, remove the room lamp cover (B).
2. After loosening the mounting screws, then remove the room lamp (A).




3. Disconnect the connector (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the connectors are plugged in properly.

Vanity Lamp Replacement
1. Using a screwdriver or remover, remove the vanity lamp (A).
2. Disconnect the vanity lamp connector (B).




3. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

Overhead Console Replacement

CAUTION:
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Put on gloves to protect your hands.

1. After loosening the mounting screws, then remove the overhead console assembly (A).




2. Disconnect the connectors (A).




3. Installation is the reverse of removal.

NOTE:
- Make sure the connectors are plugged in properly.

Roof Trim Replacement

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items:
A. Front seat

B. Rear seat

C. Floor console

D. Sunvisor
E. Vanity lamp
F. Room lamp
G. Assist handle
H. Overhead console
I. Front pillar trim

J. Front door scuff trim & Rear door scuff trim

K. Canter pillar lower trim

L. Canter pillar upper trim

M. Rear pillar trim

2. Remove the ECM mirror cover (A).
3. Disconnect the ECM mirror connector (B).




4. Remove the rain sensor cover (A).
5. Disconnect the rain sensor connector (B).




6. Disconnect the roof trim main connectors (A).

[Driver's]





[Passenger's]




7. Disconnect the antenna connector (A).




8. Disconnect the connector (A).

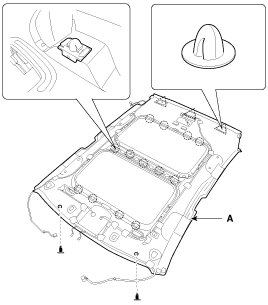

9. Detach the clips, then remove the roof trim (A).




10. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
