Component Inspection





P2156 Fuel Injector Group \'D\' Supply Voltage Circuit Low

Inspection/Repair - Component Inspection

Component Inspection

1. IG OFF.
2. Disconnect the Injector connector.
3. Measure the resistance of the Injector.
Specification :

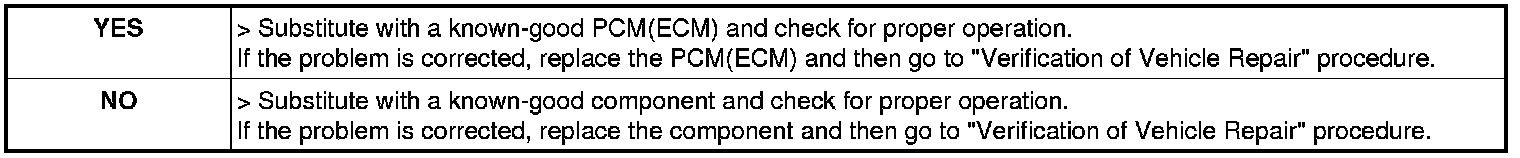

4. Is the measured resistance within specifications?
