Monitor DTC Status

P169A Immobilizer-SMARTRA Authentication Fail

Scantool Diagnostics

Monitor Scantool data

1. Connect scantool to Data Link Connector (DLC).
2. IGN "ON" & Engine "OFF".
3. Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter on the Scantool.

Specification : 'LEARNT'




Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.

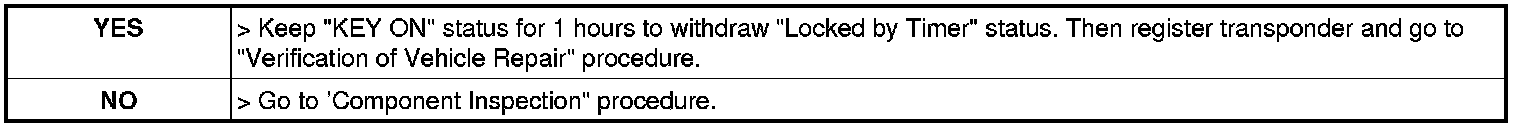

4. Has the "SMARTRA STATUS" been learnt?
