Component Inspection

P169A Immobilizer-SMARTRA Authentication Fail

Inspection/Repair - Component Inspection

Component Inspection

1. Check SMARTRA.
(1) IGN "ON" & Engine "OFF".
(2) Neutralize Both "SMARTRA" and "PCM" and Register transponder key by scantool.

NOTE:
Pin code is required to Neutralize SMARTRA and to Register transponder key

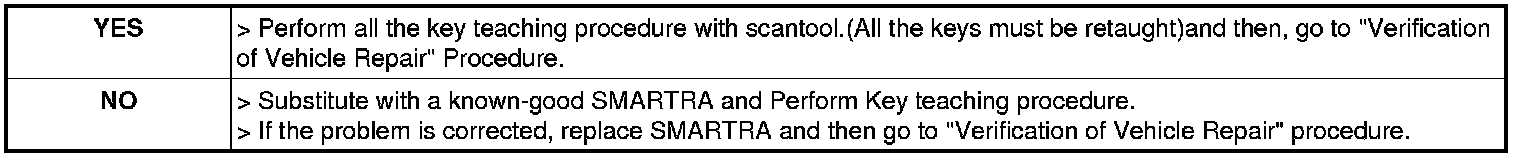

(3) Are Neutralizing and Registering completed normally?
