Component Inspection

P1694 Immobilizer-EMS Message Error

Inspection/Repair - Component Inspection

Component Inspection

1. Check PCM.
(1) IGN "ON" & Engine "OFF".
(2) Neutralize PCM and Register transponder key by scantool.

NOTE:
Pin code is required to Neutralize PCM and to Register transponder key

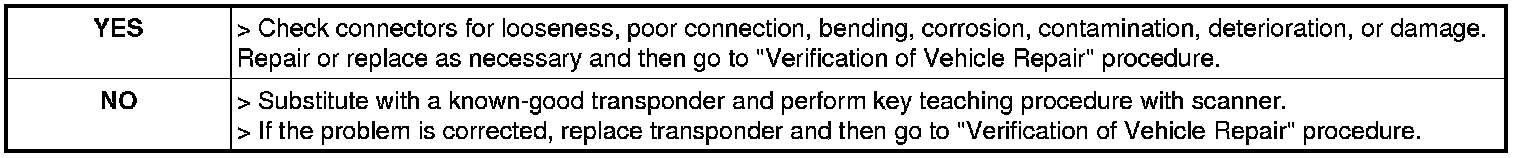

(3) Are Neutralizing and Registering completed normally?






NOTE:
PCM substituted for old one must be in "Virgin" or "Neutral" status and Pin code is required to Neutralize PCM and to Register transponder key
