Component Inspection

P1675 Immobilizer-Transponder Programming Error

Inspection/Repair - Component Inspection

Component Inspection

1. Check transponder.
(1) IGN "ON" & Engine "OFF".
(2) Neutralize PCM and Register transponder key by scantool.

NOTE:
Pin code is required to Neutralize PCM and to Register transponder key

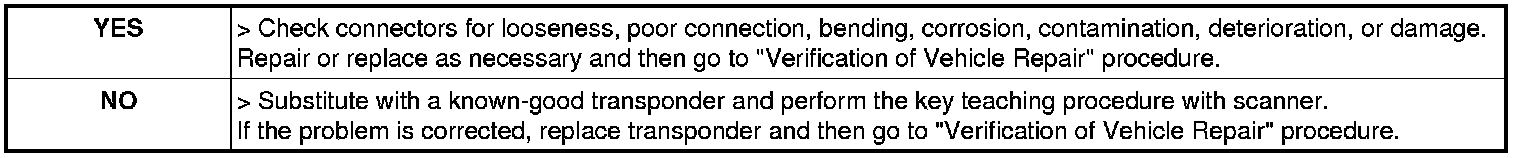

(3) Are Neutralizing and Registering completed normally?
