Scantool Diagnostics

P0955 Auto Shift Manual Mode Circuit

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON".
3. Select "Current Data" mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
4. Change shift lever to "Sports Mode".
















Fig 1) "D" range
Fig 2) "Sports Mode ON"
Fig 3) "Sports Mode Up Switch ON"
Fig 4) "Sports Mode Down Switch ON"

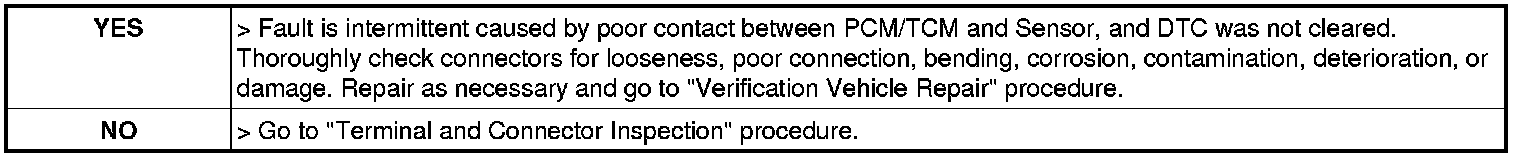

5. Is Sports Mode Switch working within specification?
