General Information

P0880 TCM Power Signal Error Open/Short (GND)

General Information

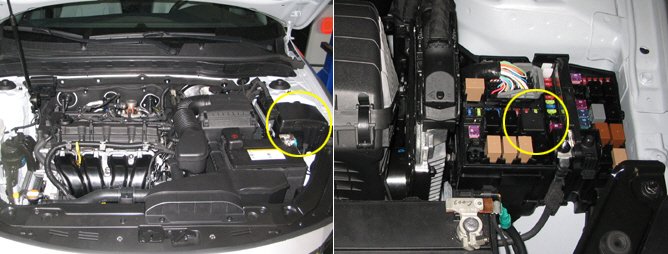

Component Location





General Description

PCM (TCM) monitored supplied voltage to ATM solenoid valve. This voltage is without specific, then gear is fixed 4th speed.

DTC Description

This code is set when input voltage of solenoid is without specification.

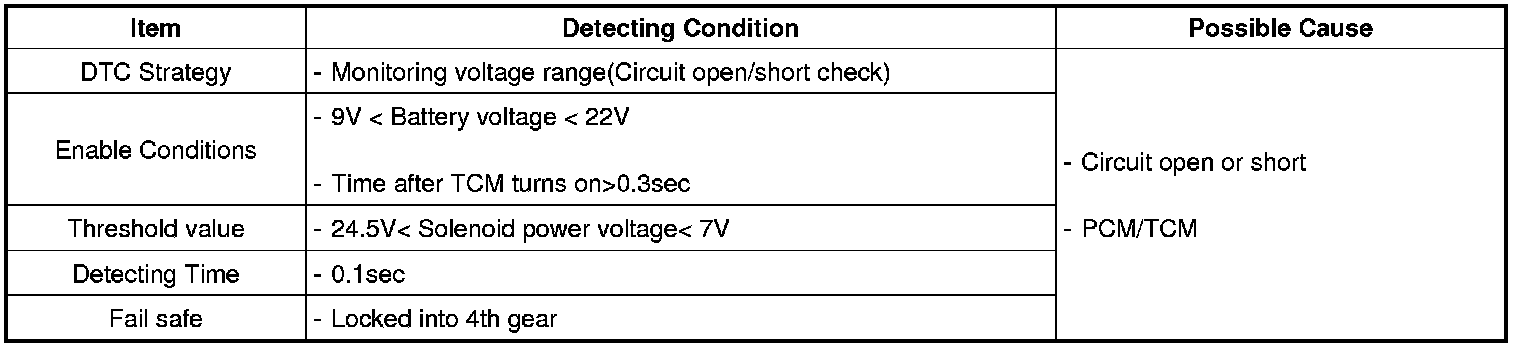

DTC Detecting Condition

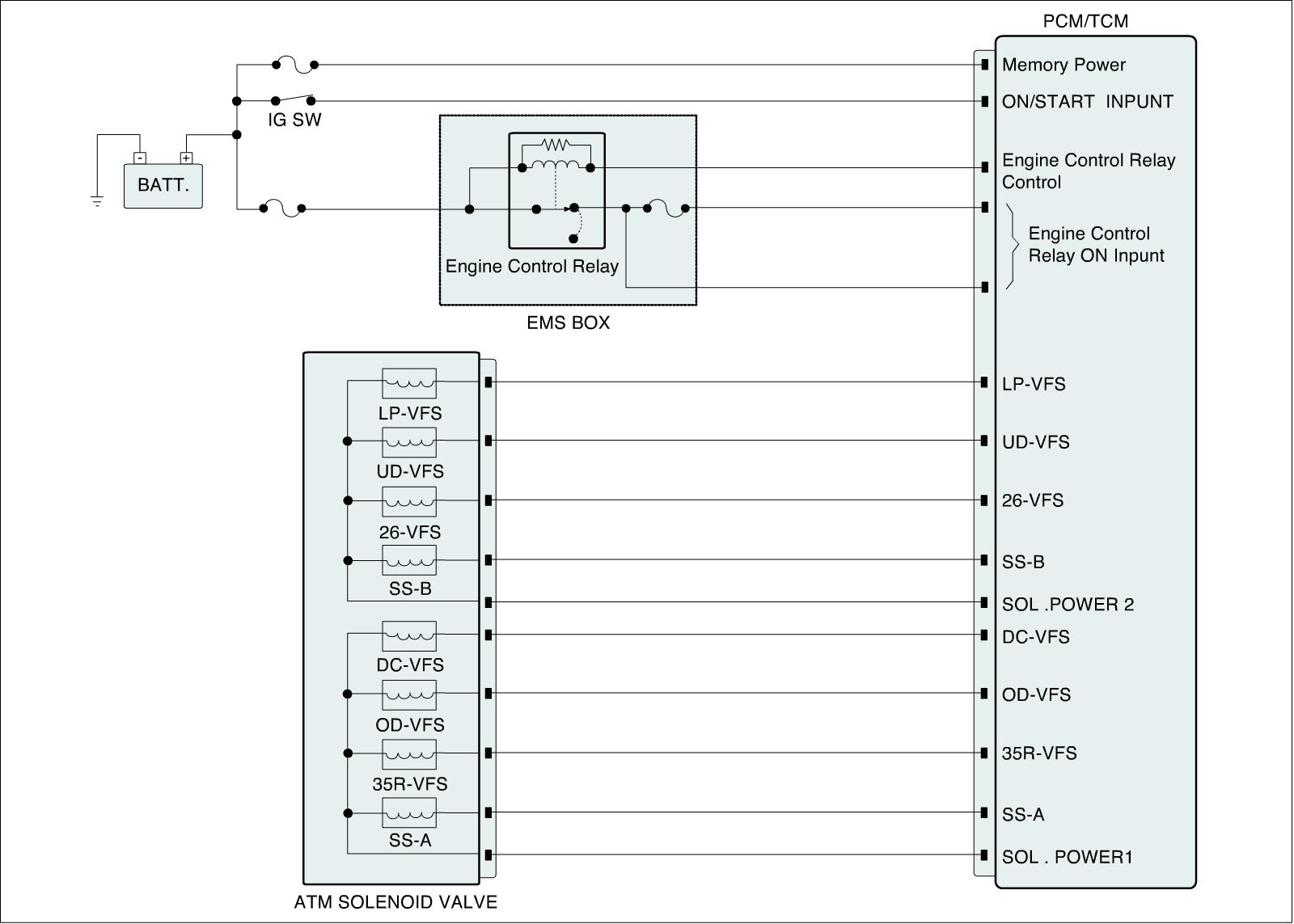

Diagnostic Circuit Diagram
