Component Inspection

P0763 Shift Control Solenoid Valve \'C\' Electrical (35R/C)

Inspection/Repair - Component Inspection

Component Inspection

Shift control solenoid valve (35R/C-VFS) Inspection
1. Ignition off & Engine Off.
2. Disconnect "ATM solenoid valve connector.

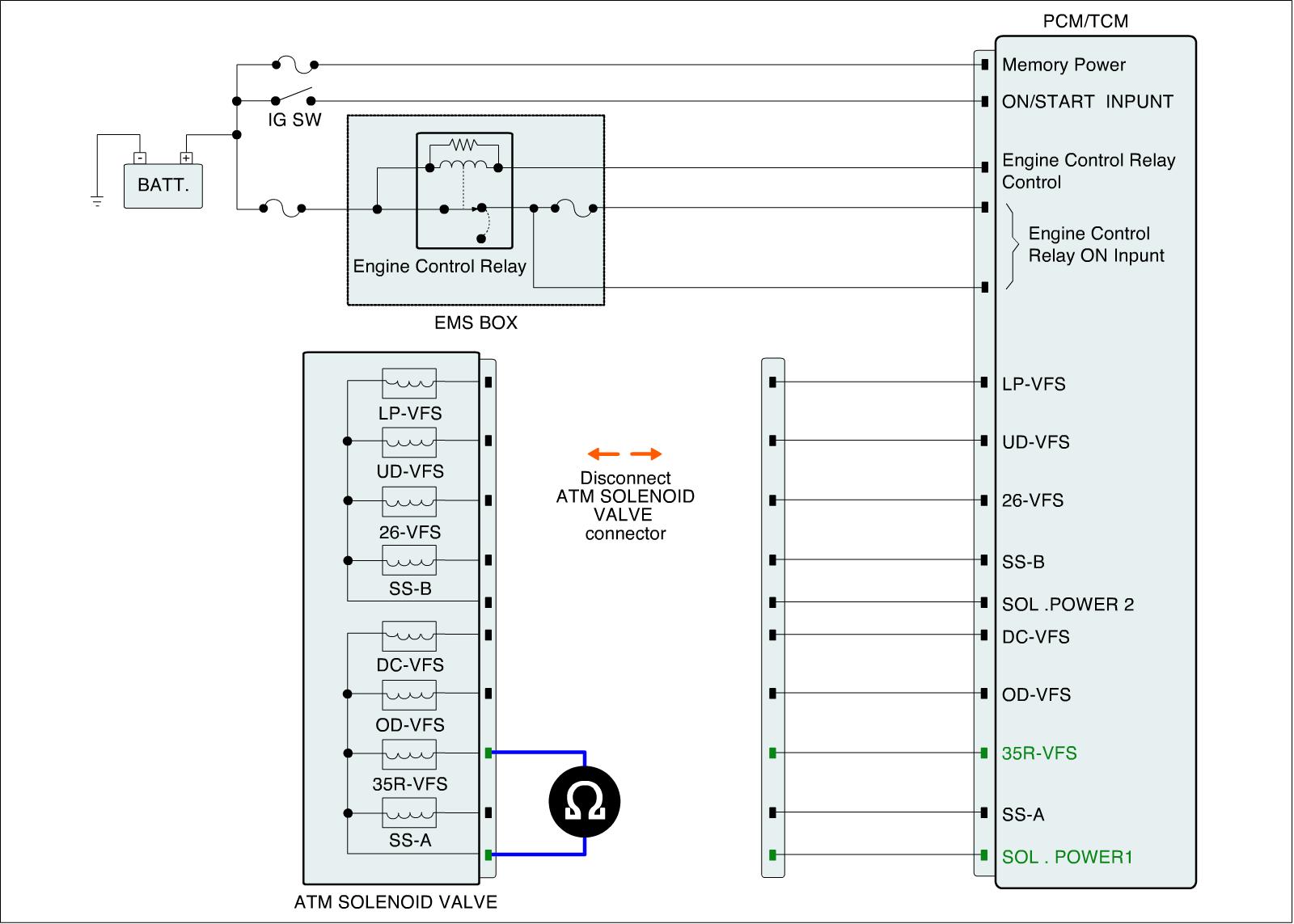

3. Measure a resistance between "Shift control solenoid valve (35R/C-VFS)" terminal and power at ATM solenoid valve connector.

Specification : 5.1 ± 0.3 Ohms (25 °C)

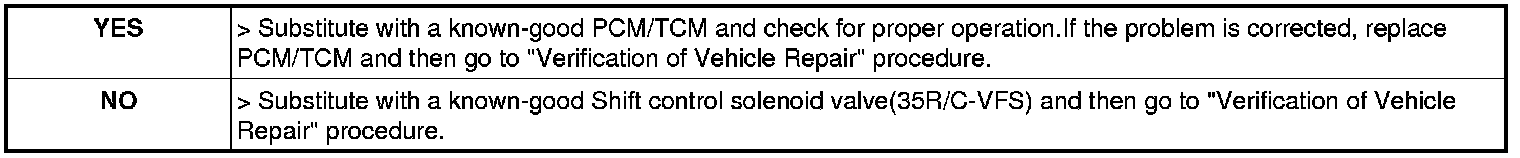

4. Is measured resistance within specification?
