P0753 Shift Control Solenoid Valve \'A\' Electrical (UD/B)

General Information

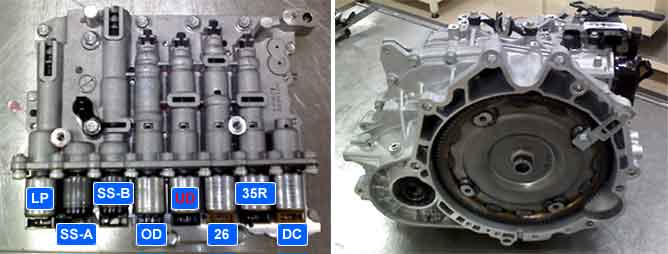

Component Location





General Description

PCM/TCM control UD-VFS (Shift Control Solenoid Valve) solenoid valve by changed current for reducing UD brake shock.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

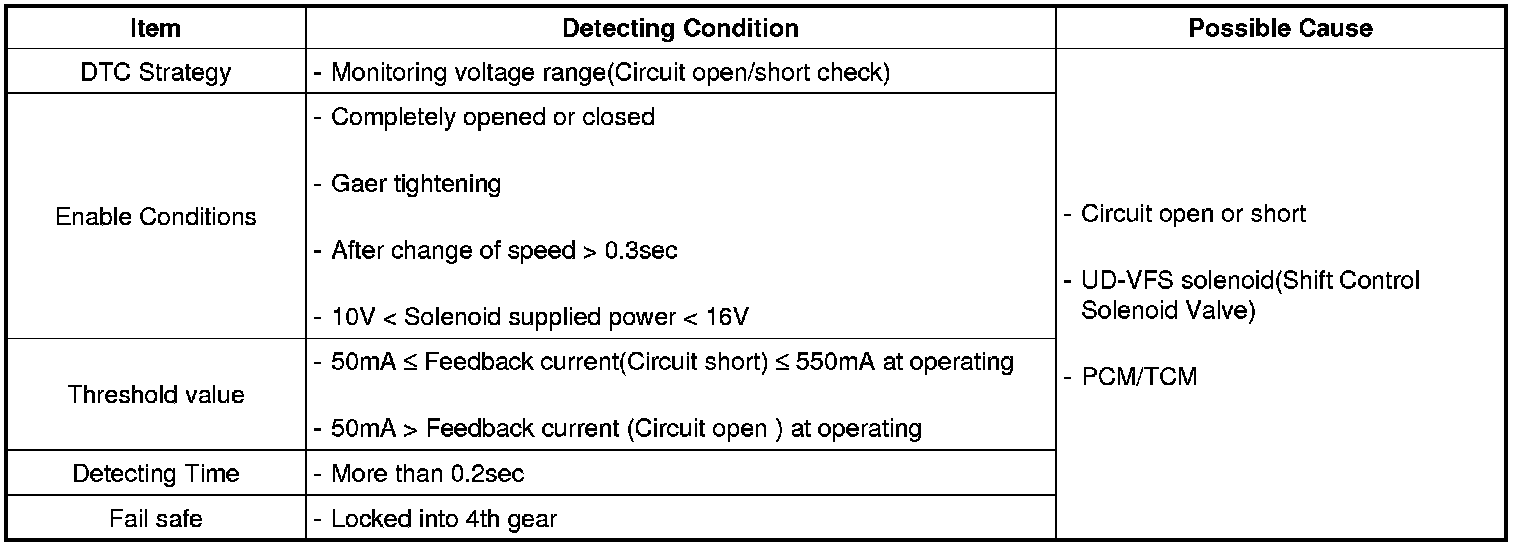

DTC Detecting Condition





Specification

Operating step table at each status





o : Connected status
x : Connected at Vehicle speed above 8 km/h





o : Operated at Vehicle speed under 5 km/h

- Working temperature : -40 °C~150 °C
- Internal resistance : 5.1 ± 0.3 Ohms (25 °C normal temperature)

Diagnostic Circuit Diagram










Signal Waveform & Data

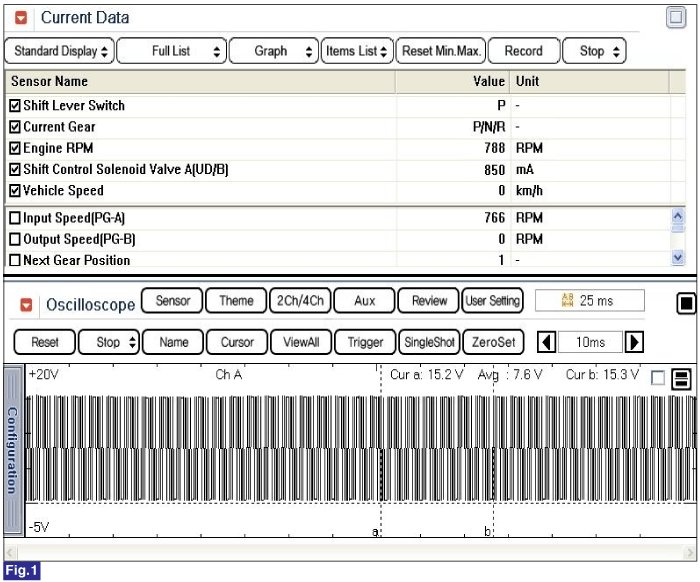

Fig 1) Wave form of UD-VFS
