Component Inspection

P0748 Pressure Control Solenoid Valve (VFS) \'A\' Electrical

Inspection/Repair - Component Inspection

Component Inspection

Pressure control solenoid valve (LP-VFS) Inspection
1. Ignition off & Engine Off.
2. Disconnect "ATM solenoid valve connector.

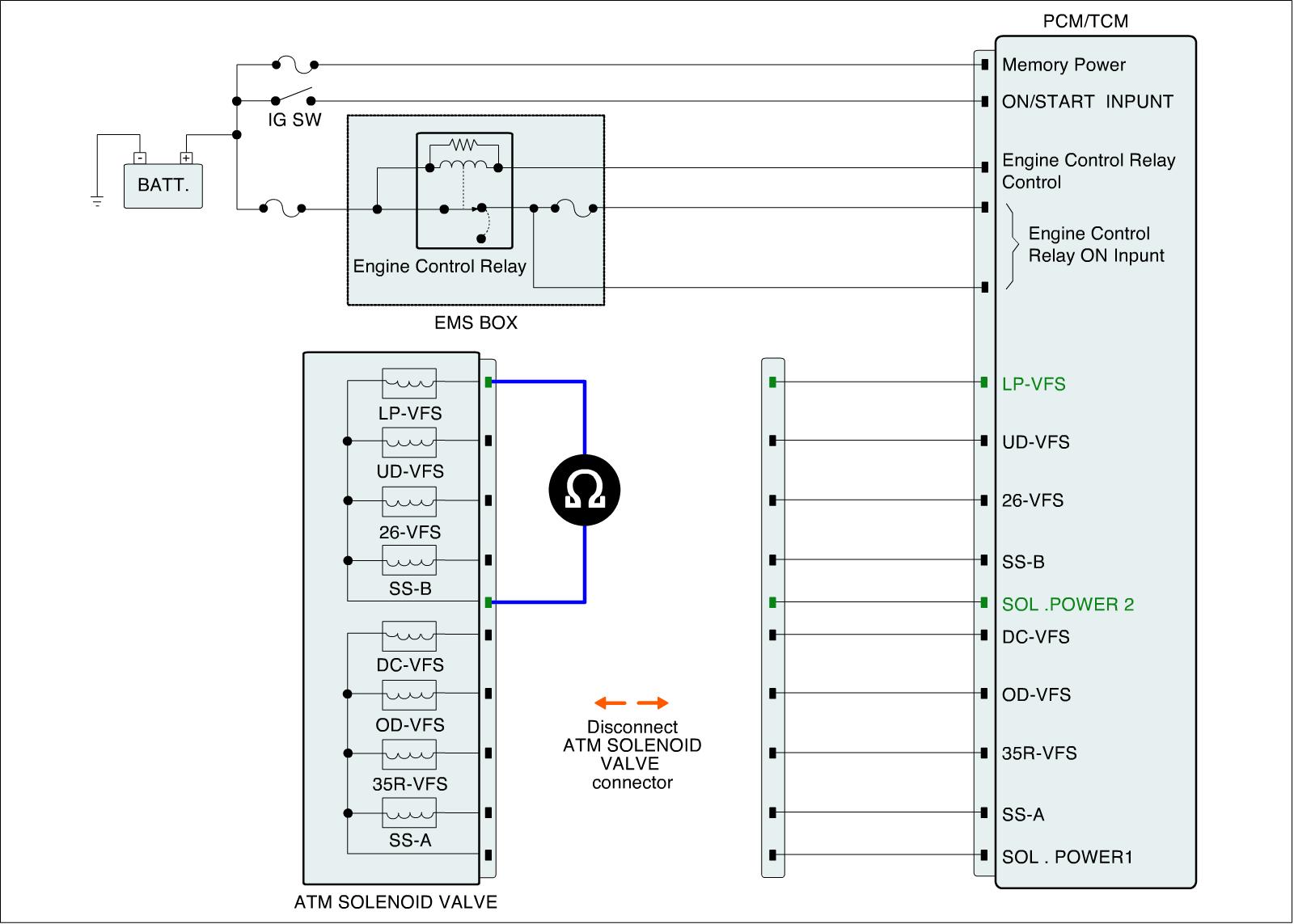

3. Measure a resistance between "Pressure control solenoid valve (LP-VFS)" terminal and power at ATM solenoid valve connector.

Specification : 5.1 ± 0.3 Ohms (25 °C)








4. Is measured resistance within specification?
