Component Inspection

P0741 Torque Converter Clutch Circuit Performance or Stuck Off

Inspection/Repair - Component Inspection

Component Inspection

DC solenoid valve Inspection
1. Ignition OFF.
2. Disconnect ATM solenoid valve connector.

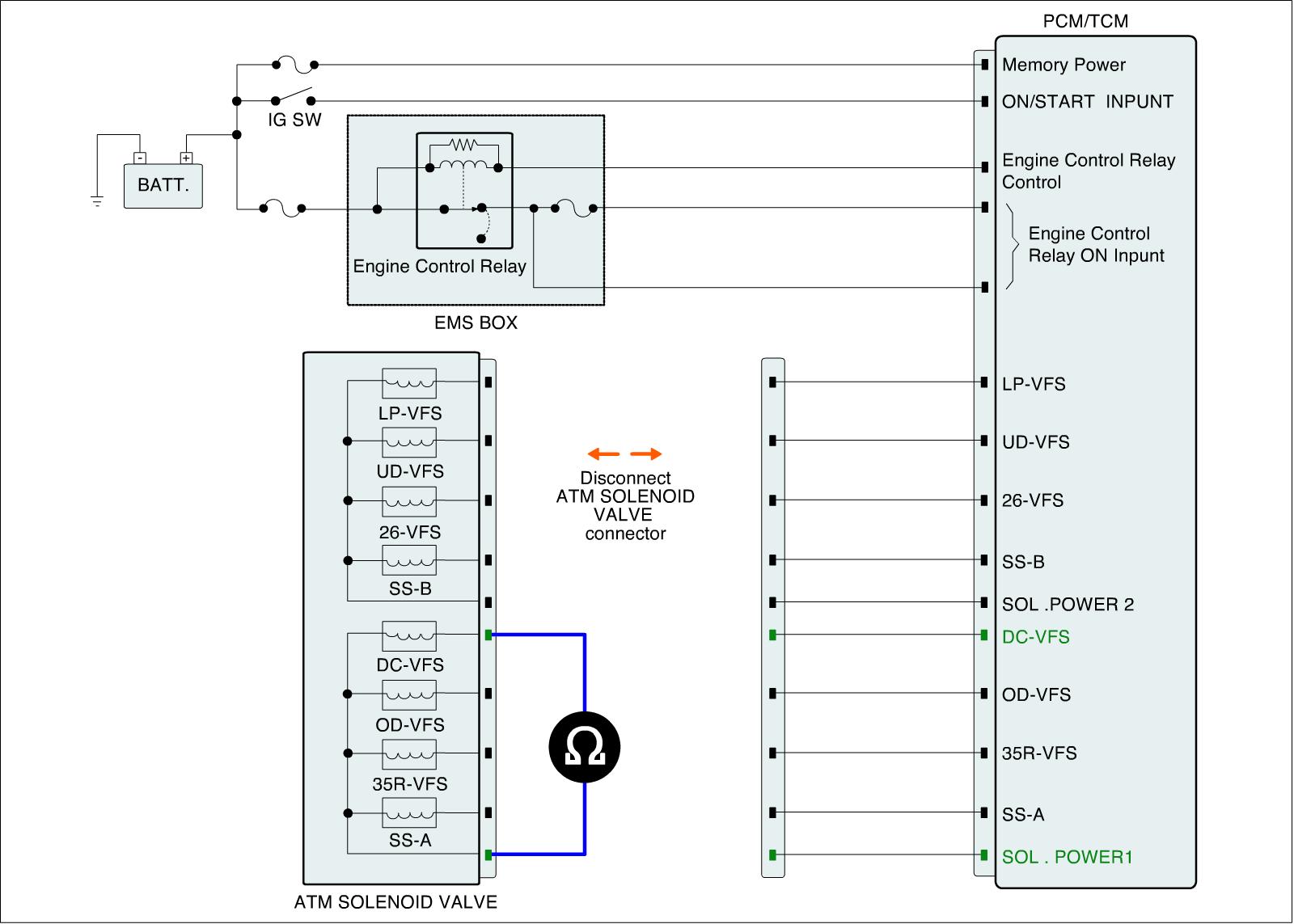

3. Measure resistance between DC solenoid vale terminal of ATM solenoid valve component and ON/START power.

Specification : 5.1 ± 0.3 Ohms (25 °C)

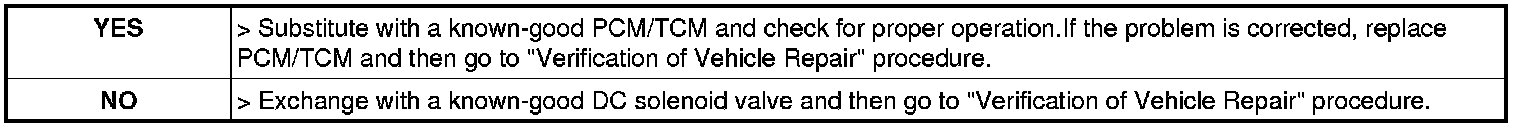

4. Is measured resistance within specification?
