Component Inspection

P0734 Gear 4 Incorrect Ratio

Inspection/Repair - Component Inspection

Component Inspection

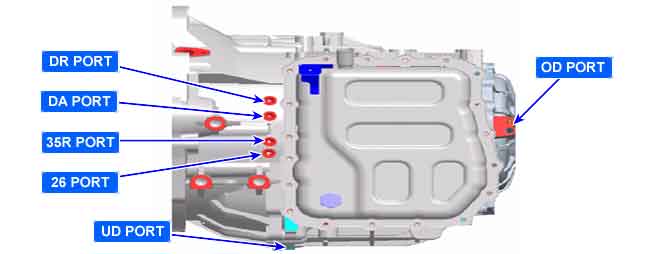

1. Connect oil pressure gage at "UD brake" port and "OD Clutch" port.
2. Engine ON.
3. Driving with 4th speed of gear at sports mode.

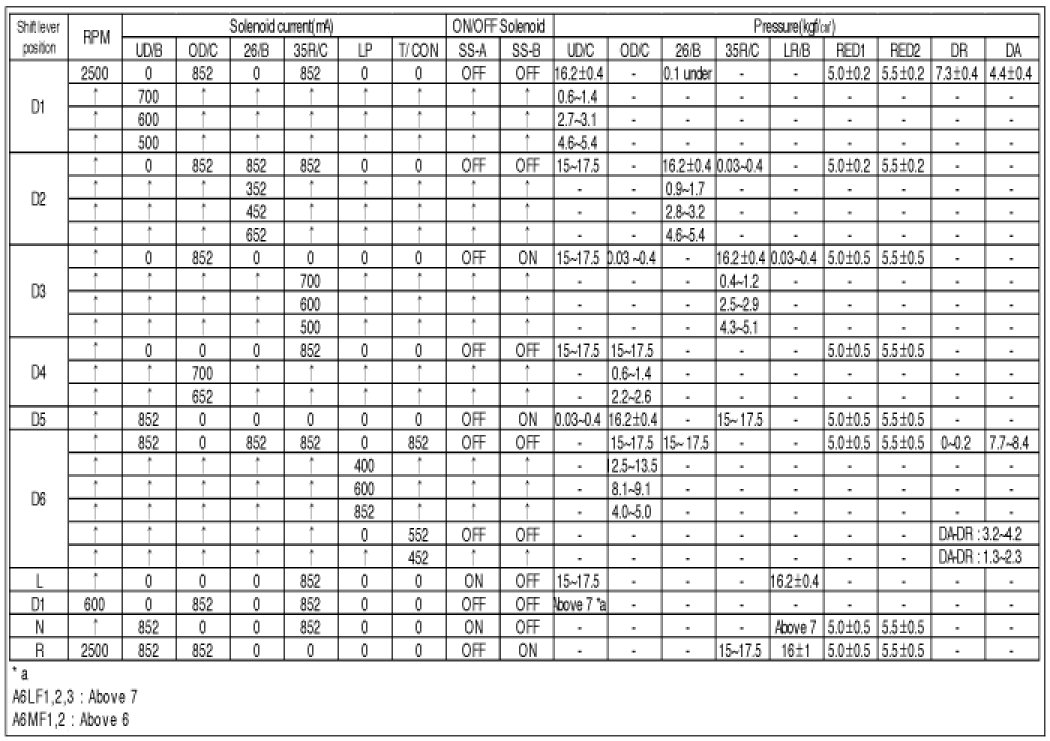

4. Check by below specification table.

Specification : See below specification table




** Above specification value can be different by vehicle model/measured variation.
5. Is measured oil pressure value within specification?
