Scantool Diagnostics

P0706 Transmission Range Sensor Circuit Range/Performance

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
4. Change a shift lever from P-range to D-range.
















Fig 1) P range

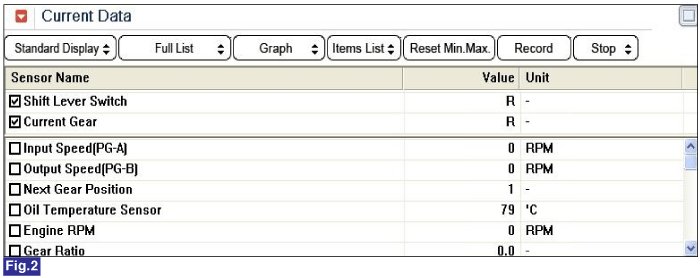

Fig 2) R range
Fig 3) N range

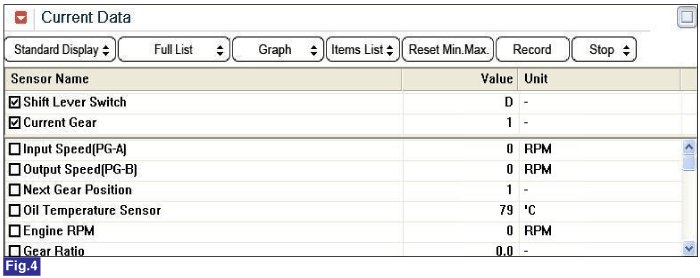

Fig 4) D range

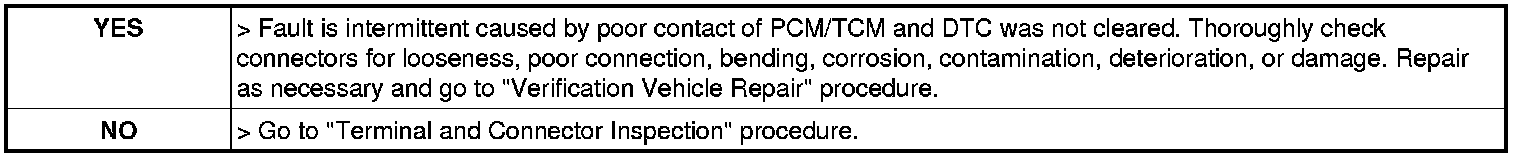

5. Is the Inhibitor switch value changed in specification?
