Component Inspection

P0564 Cruise Control Multi-Function Input A Circuit

Inspection/Repair - Component Inspection

Component Inspection

Check auto cruise switch
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector.

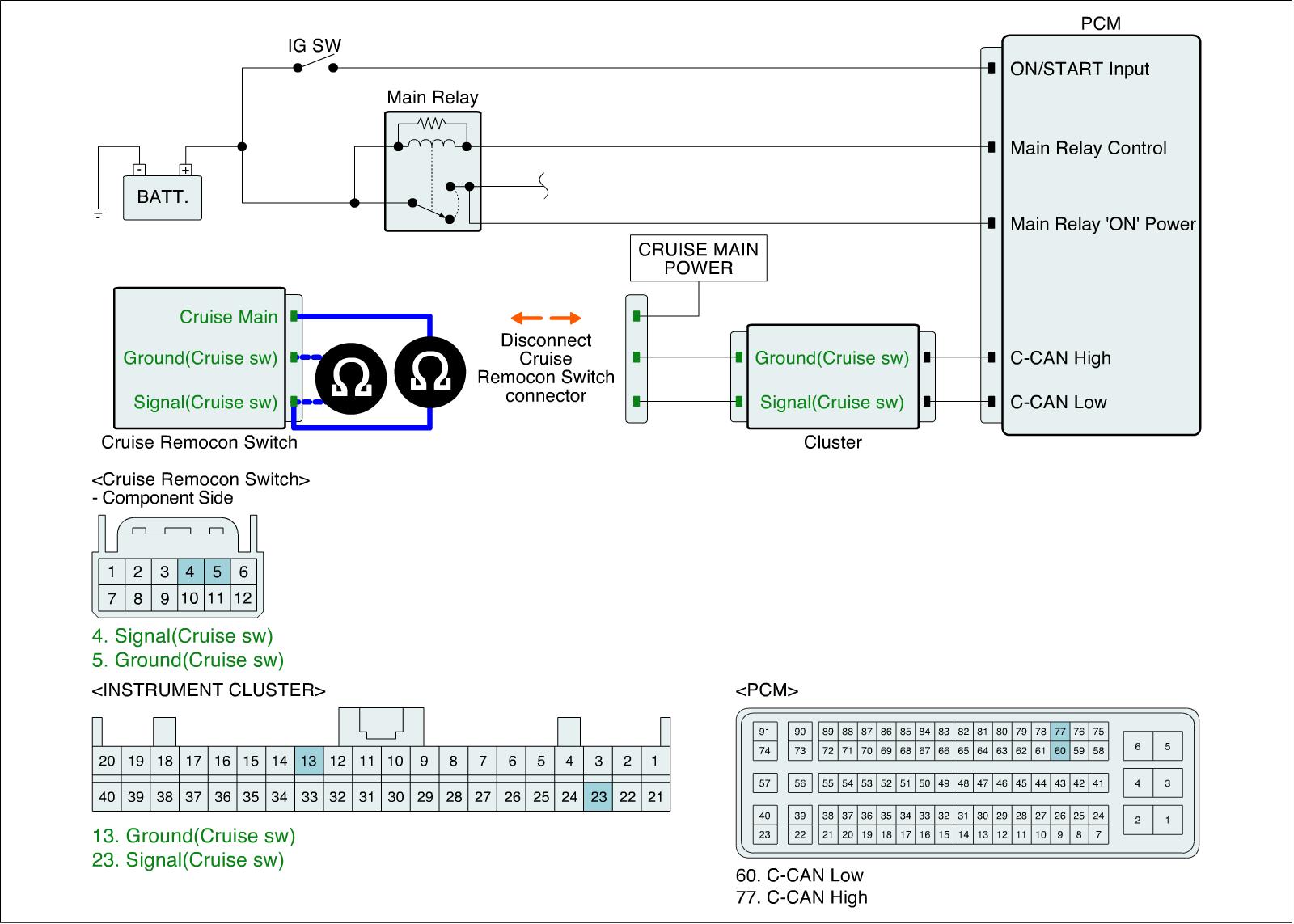

3. Measure resistance between 'Signal (Cruise sw)' terminal and 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector with each switch depressed. (Component side)
4. Measure resistance between 'Signal (Cruise sw)' terminal and 'Ground (Cruise sw)' terminals of 'CRUISE REMOCON SWITCH' harness connector. (Component side)

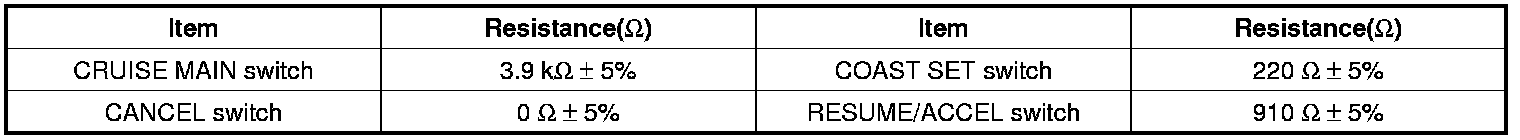

Specification :









5. Is the measured value within specification?






NOTE:
There is a memory reset function on GDS that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others.
