Component Inspection

P0036 HO2S Heater Control Circuit (Bank 1 / Sensor 2)

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".

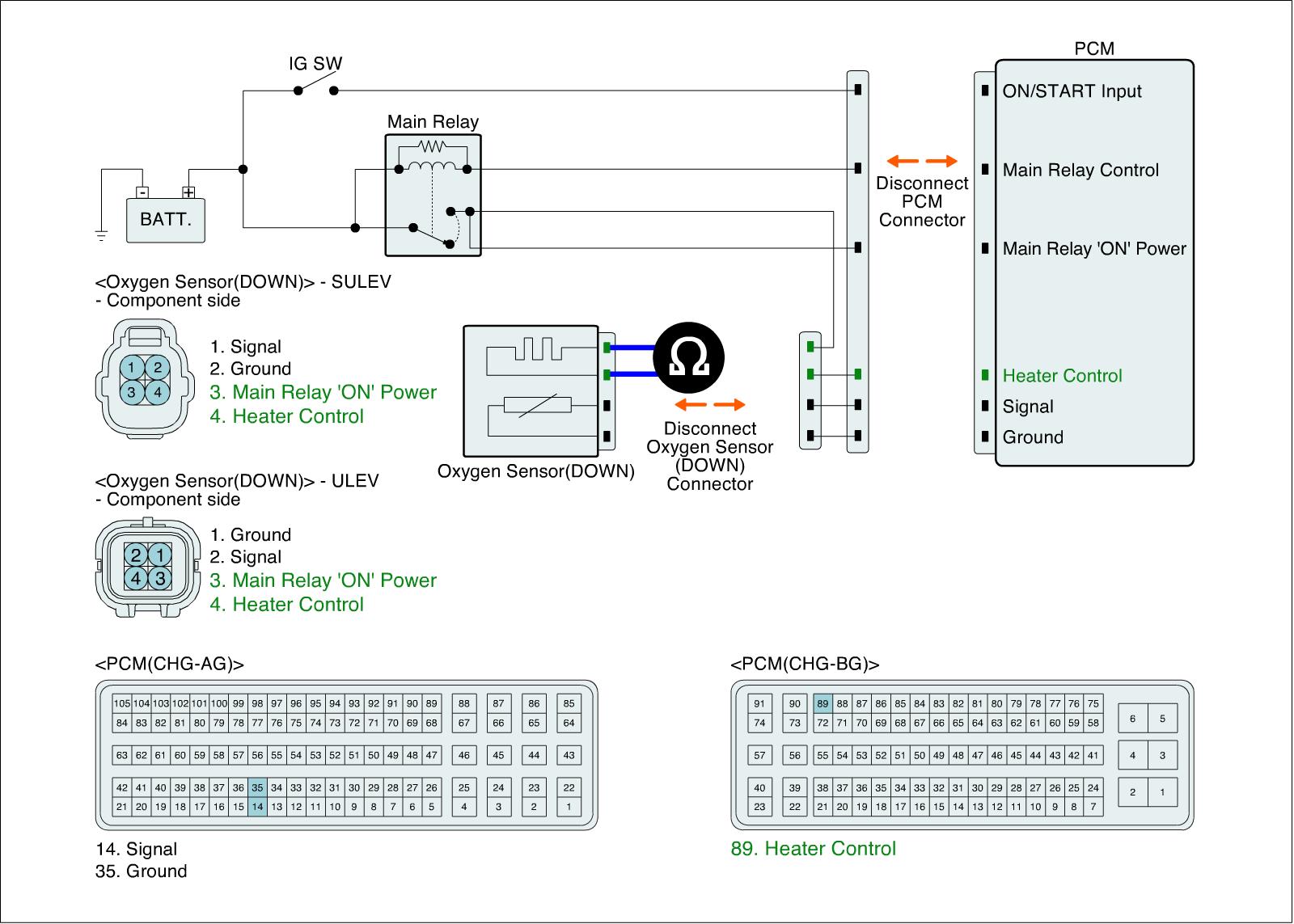

2. Measure resistance between power terminal and control terminal of the sensor connector. (Component side)
Specification
