Component Inspection

P0030 HO2S Heater Control Circuit (Bank 1 / Sensor 1)

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect HO2S connector.

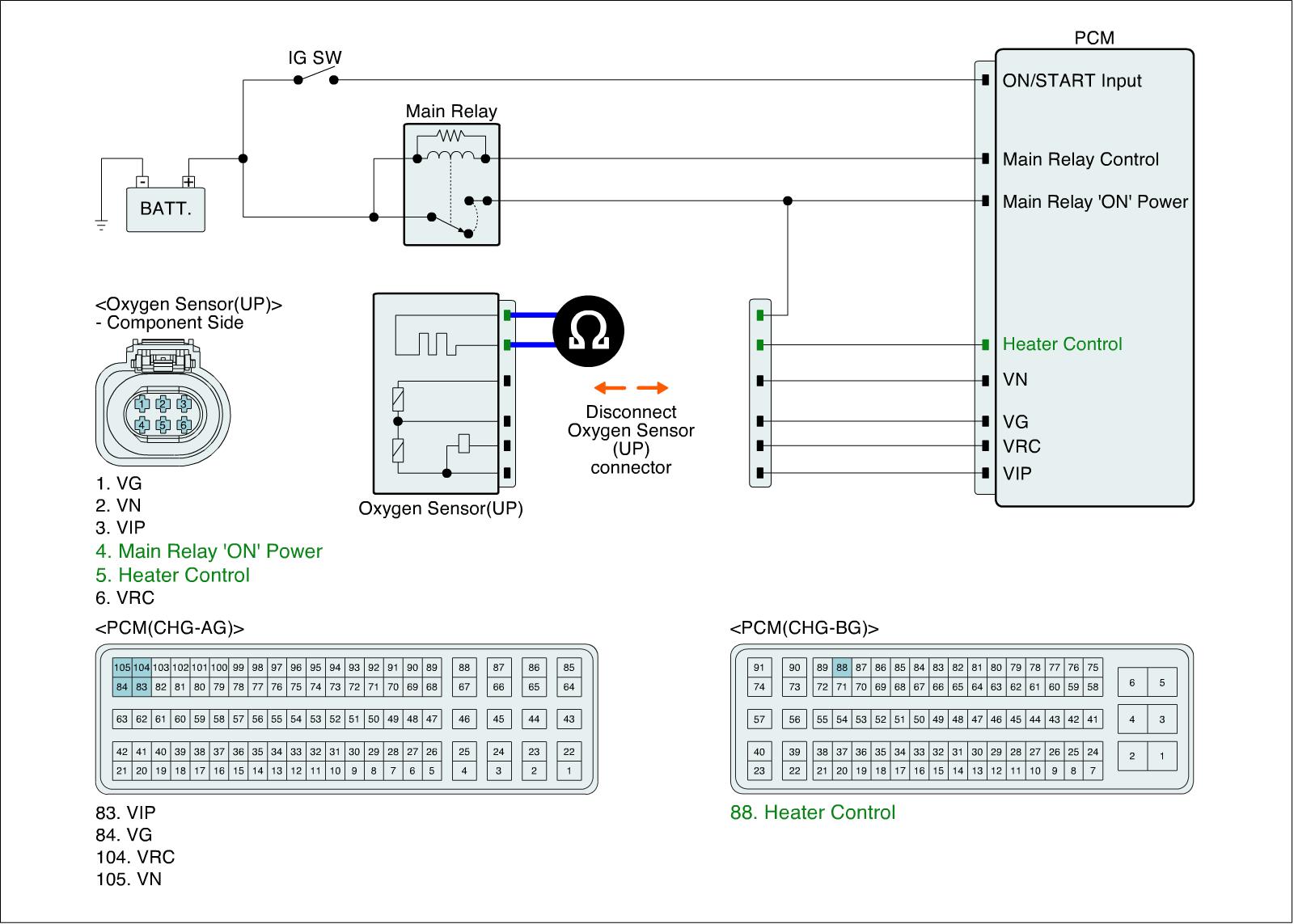

3. Measure resistance between Heater Control terminal and Heater Power terminal of the HO2S connector. (Component side)

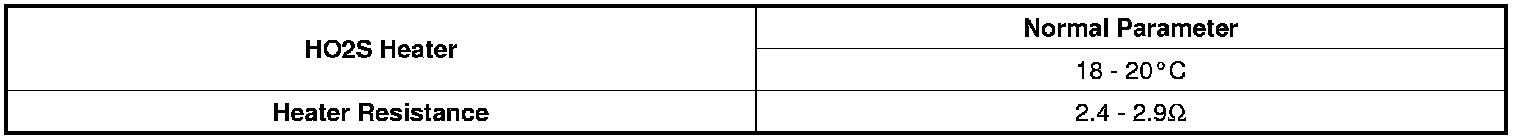

Specification :
