Scantool Diagnosis





C1702 Variant Coding Error

Scantool Diagnostics

Monitor Scantool Data

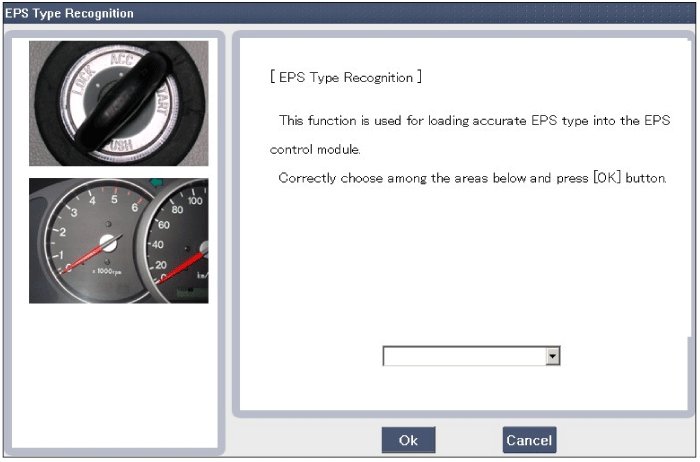

EPS Type recognition
1. Connect scantool to Data Link Connector (DLC)
2. Ignition "OFF" and then Ignition "ON".
3. Choose the area type (figure 1).
4. Ignition "OFF" & Waiting 20 sec.
5. Ignition "ON".
6. Select "Diagnostic Trouble Codes (DTCs)" mode again.

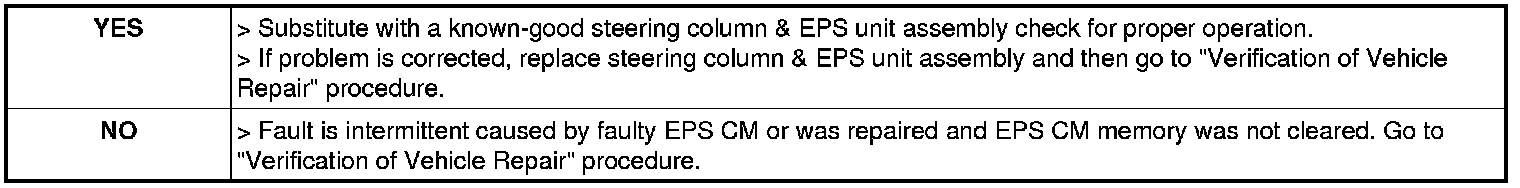

7. Are any DTCs present?
