C1613 CAN Wrong Message
General Information

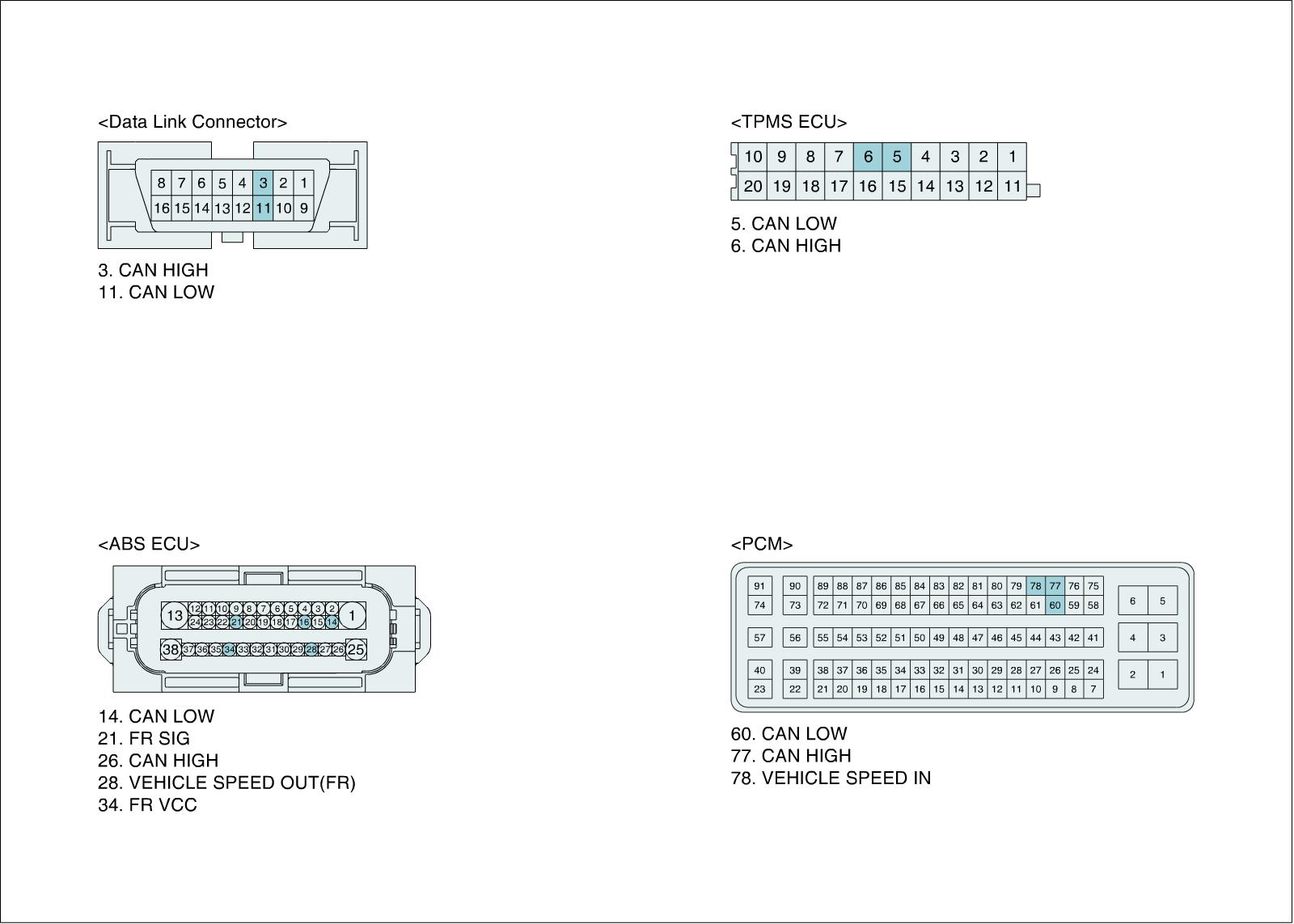

Component Location
General Description
Various TPMS functions rely on an accurate vehicle speed. Three speed signals (ABS1 FR wheel, EMS1 speed signal, TCS5 FR wheel) are compared to acquire the correct vehicle speed. If the three signals do not match, a DTC will be set and the TPMS Warning indicator will turn on.
DTC Description
This DTC indicates that there is a fault in speed inputs to receiver failure. It can be caused by damage to speed sensor, receiver input failure, incorrectly wired harness & shorted or open pins.

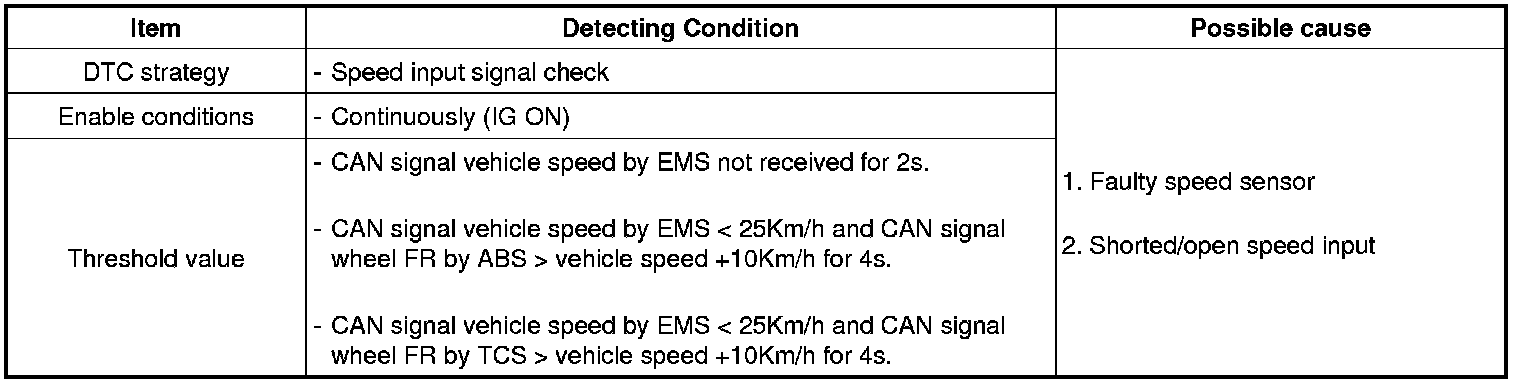

DTC Detecting Condition

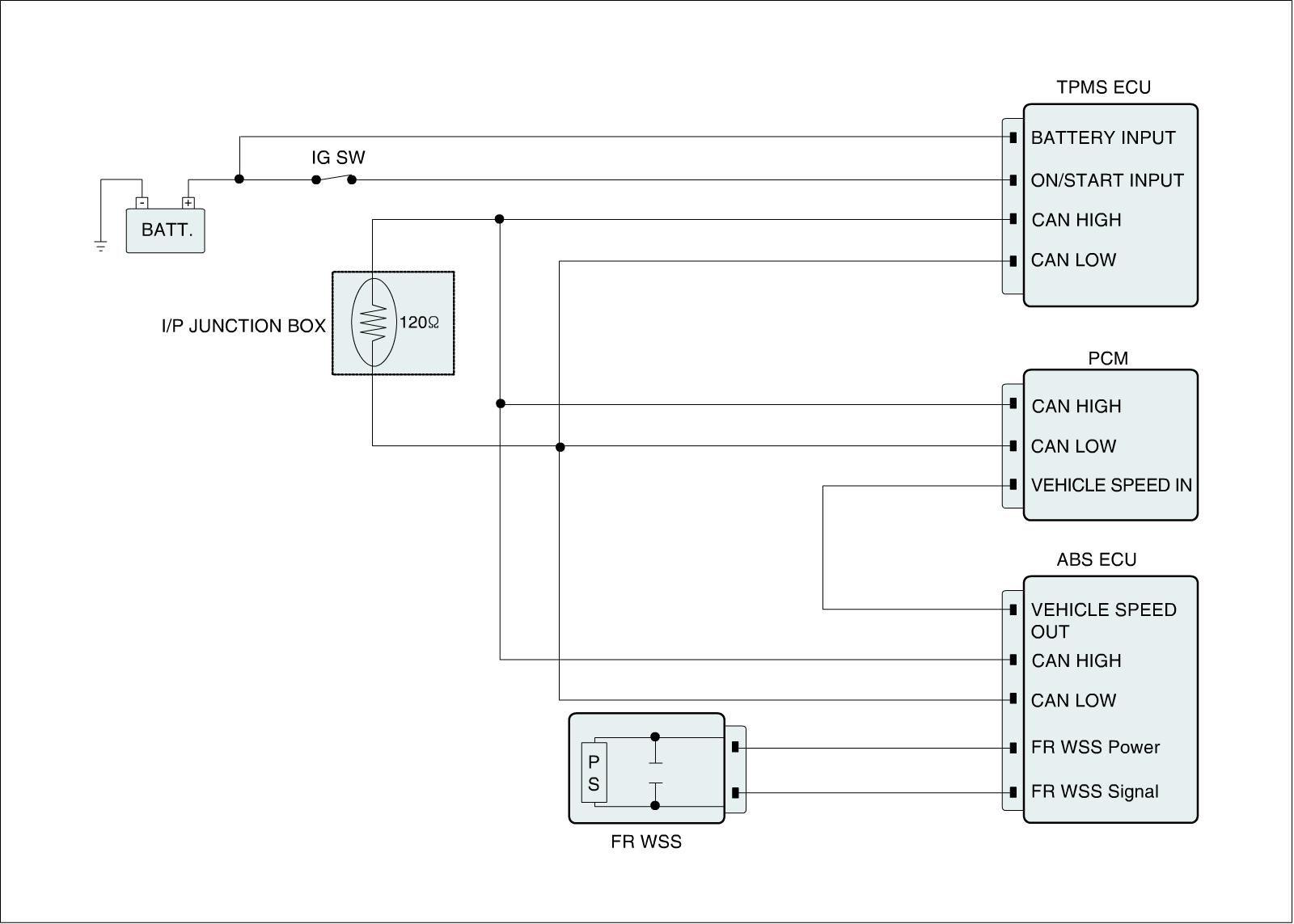

Diagnostic Circuit Diagram
