Scantool Diagnostics

C1323 Sensor 2 Over Temperature

Scantool Diagnostics

Monitor GDS Data

1. Set up 'GDS' with 'GDS TPMS'.
2. Select the "Sensor Status" mode of "Vehicle S/W Management" function.
3. Monitor the parameter related to 'Sensor 2' on the GDS.

Specification : 'Temperature' is Less than 239 °F (115 °C)








Fig.1) Data displayed by TPMS Exciter

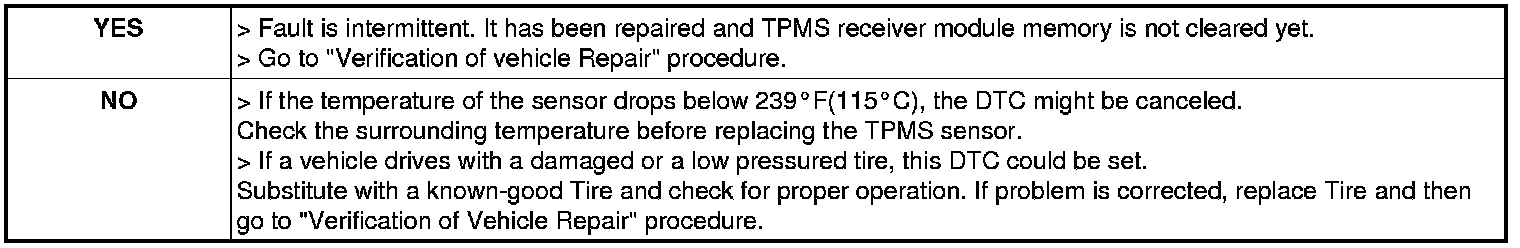

4. Is parameter within specifications?
