Component Inspection

C1283 Yaw Rate & Lateral G Sensor-Signal

Inspection/Repair - Component Inspection

Component Inspection

1. IG "OFF"
2. IG "ON".
3. Drive the vehicle within DTC Detecting Condition in General Information, including the left turn one time and the right turn one time.
4. Using a GDS, Clear DTC.
5. Select "Diagnostic Trouble Codes (DTCs)" mode again.

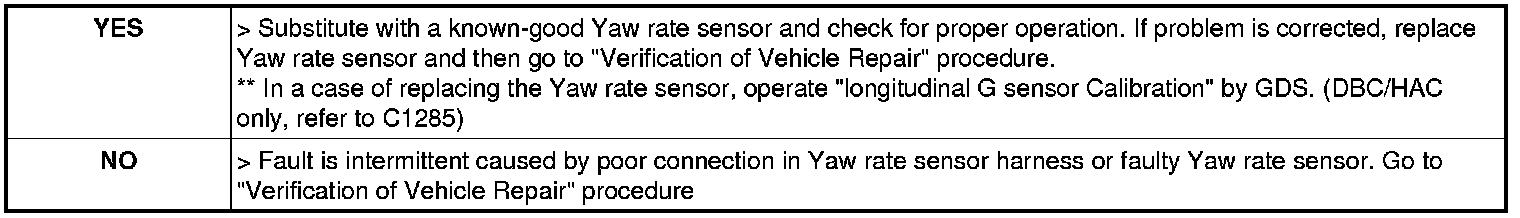

6. Are any DTCs present?
